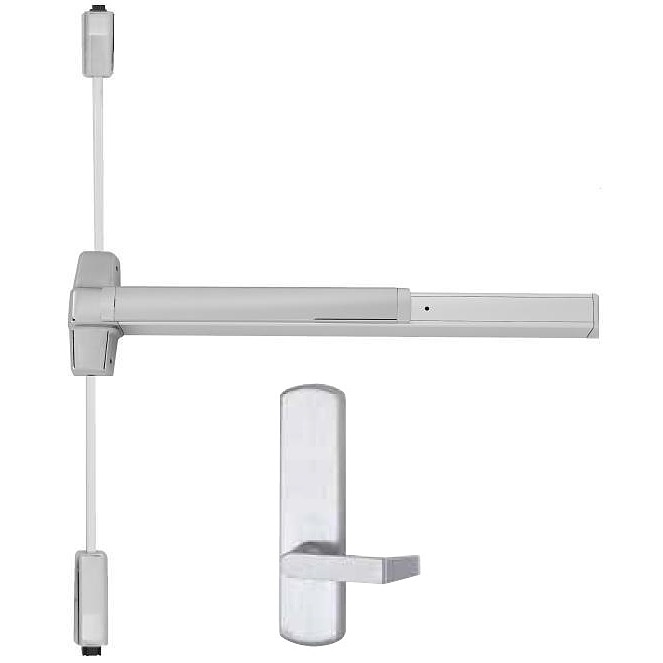

Von Duprin 9927L-DT-26D

Special Order Surface Mounted Vertical Rod Device with Dummy Lever Trim

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 9927L-DT-26D

Choose Options Below

Von Duprin 9927L-DT surface mounted vertical rod device with dummy lever trim. Series 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with dummy lever trim function, Plull when dogged.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

  • Device with dummy lever trim function, pull when dogged.
  • Dummy lever cannot be locked, no cylinder.
  • Rim cylinder not included
  • Satin chrome finish.
  • Vertical Rods-standard rods accommodate 7’ door
  • Device Functions- device ships EO/DT/NL/TP or L, field selectable.
  • For all types of single or double doors.

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Strikes Top - 299 – Dull black finish, Bottom – 248L4 & 304L - unfinished
  • Hex key dogging standard
  • Latch Bolt -  Deadlocking Anti-friction Top & Bottom Bolt, 5/8" throw
  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Non-handed except when the following device options are used:
    SD (Special Dogging), or SS (Signal Switch).
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Door thickness- 1-3/4" and 2-1/4" with standard centerlines
  • Device Centerline from Finished Floor 39-5/8"
  • Top rod length is 34-15/16". Bottom rod length is 31-1/4"
  • Door Undercut 1/4"
  • Center Case Dimensions 8" x 2-3/4" x 2-3/8"
  • Top & Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
  • Projection -Pushbar Neutral, 3-13/16" Pushbar Depressed, 3-1/16"
    Available as a special order in other finishes and with RX,LX, or SS swithches.
    Call us directly to arrange your special order.
