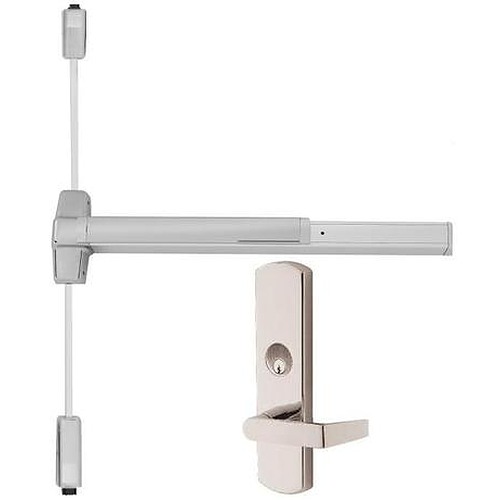

Von Duprin 9927L

Surface Mounted Vertical Rod Device with Lever Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Lever Trim
  • Surface Mounted
  • Heavy Duty
SKU: 9927L

Price: $1,308.00 /each

Choose Options Below

This Von Duprin 9927L is a handed, surface mounted, vertical rod exit device and lever trim. It is a heavy duty, high quality product that is backed by a limited three-year Von Duprin warranty. It is available with cylinder dogging to enable a door to remain unlocked when necessary.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,308.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

Choose EL (Electric Latch Retraction):

Need Help Deciding?

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose Cylinder Dogging:

Help Me Decide

  • Dogging an exit device will put the device in the passage mode. This feature lets an override of the exit device or crash bar for the door to remain unlocked - functioning as regular locking doors. Dogging features are very useful when it is not convenient for a specific door locked from the outside to stay locked.
  • Cylinder dogging on panic exit devices will replace the standard hex key dogging.
  • Unit requires a standard 1-1/4" mortise cylinder with a straight cam, not included.
  • Not available for Fire Rated devices.

Choose Cylinder Rim:

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Fire Rated:

Help Me Decide

UL listed for fire exit hardware.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Finish:

  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)
  • Cylinder Dogging: info icon

    • No Cylinder Dogging
    • Cylinder Dogging, less cylinder (050115)
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • Fire Rated: info icon

    • UL Fire Rated Exit Device
    • Non Fire Rated

Product at A Glance

  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Mortise cylinder is not included
Style Vertical Rod exit device
Door Undercut 1/4"
Grade Heavy duty
Mounting Surface mounted
Trim Lever Trim:
- Key locks and unlocks lever
Handing Non-handed except when used with SD - Special Dogging or SS - Single Switch options
Door Thickness 1-3/4" and 2-1/4" with standard centerlines
Door Height 7' (standard)
Dogging Feature Hex key dogging standard on non fire-rated devices
Strike - Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Top Rod Length 34-15/16"
Bottom Rod Length 31-1/4"
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device 39-5/8"
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Surface Mounted Vertical Rod Device with Lever Trim

Surface Vertical Rod Exit Device Adjustment thumbnail

Surface Vertical Rod Exit Device Adjustment
