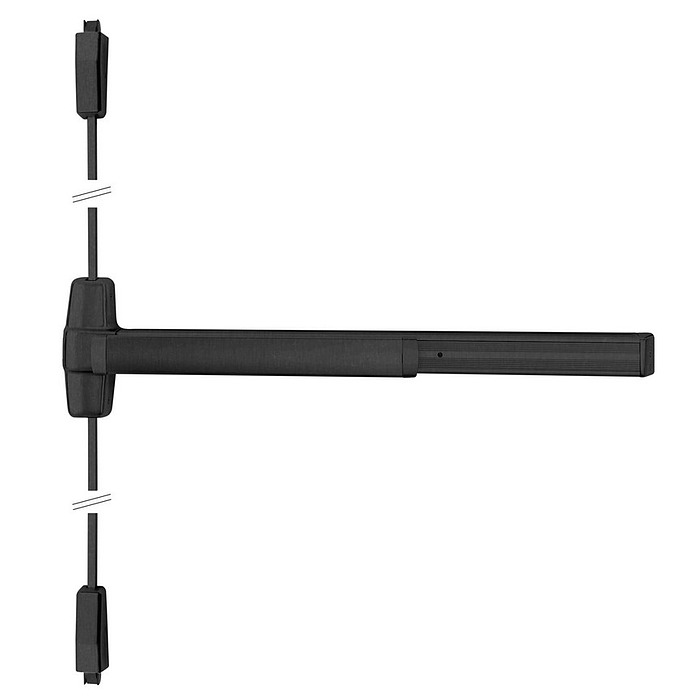

Von Duprin 9927NL-OP-4FT-315

Special Order Surface Mounted Vertical Rod Device with Night Latch Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9927NL-OP-4FT-315

Choose Options Below

Von Duprin 9927NL-OP surface mounted vertical rod device with night latch trim. Series 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with night latch trim function, key retracts latchbolt.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Same-Day Shipping*When ordered before 2PM ET

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

4 FT

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $18.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$18.00
No Rim Cylinder Needed
Rim Cylinder-Schlage C Keyway Dark Bronze (QH200) + $18.00 Rim Cylinder-Schlage C Keyway Dark Bronze (QH200) +$18.00

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose FINISH:

315 Black Anodized Aluminum 315 Black Anodized Aluminum

Overview

  • Device with night latch trim for metal doors 110NL-MD, key retracts latchbolt.
  • Night latch function, key retracts latch,door relocks automatically.
  • Optional pull required
  • Rim cylinder not included
  • Vertical Rods-standard rods accommodate 7’ door
  • For all types of single or double doors.
  • Made for 4FT Doors
  • Finished in 315 - Black Anodized Aluminum

Available Options: Choose Options Above

  • Rail Size: info icon

    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
    • Rim Cylinder-Schlage C Keyway Dark Bronze (QH200)
  • FINISH:

More Info

  • Strikes Top - 299 – Dull black finish, Bottom – 248L4 & 304L - unfinished
  • Hex key dogging standard
  • Latch Bolt -  Deadlocking Anti-friction Top & Bottom Bolt, 5/8" throw
  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Non-handed except when the following device options are used:
    SD (Special Dogging), or SS (Signal Switch).
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Door thickness- 1-3/4" and 2-1/4" with standard centerlines
  • Device Centerline from Finished Floor 39-5/8"
  • Top rod length is 34-15/16". Bottom rod length is 31-1/4"
  • Door Undercut 1/4"
  • Center Case Dimensions 8" x 2-3/4" x 2-3/8"
  • Top & Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
  • Projection -Pushbar Neutral, 3-13/16" Pushbar Depressed, 3-1/16"
    Available as a special order in other finishes and with RX,LX, or SS switches.
    Call us directly to arrange your special order.
