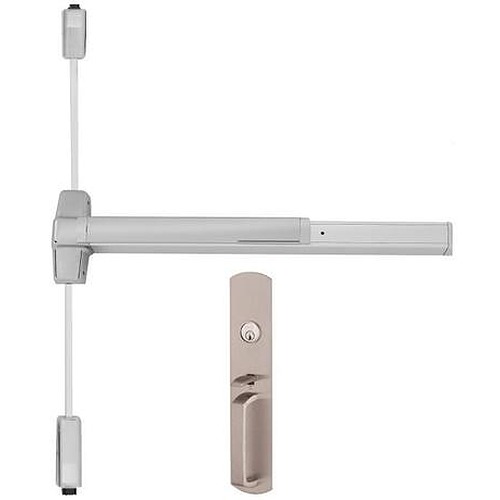

Von Duprin 9927TP

Surface Mounted Vertical Rod Device with Thumbpiece Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Thumbpiece Trim
  • Surface Mounted
  • Heavy Duty
SKU: 9927TP

Price: $1,186.00 /each

Choose Options Below

This Von Duprin 9927TP is a night latch function, thumbpiece trim, surface mounted, vertical rod exit device. When the push-bar is neutral it projects 3-13/16" and when it is depressed it projects only 3-1/16". Supplied standard with hex key dogging to keep the latchbolt retracted and allow free swinging of the door.

  • In Stock!
  • Order in the next 34 hours 20 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,186.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Finish:

Choose Fire Rated:

Help Me Decide

UL listed for fire exit hardware.

Choose Cylinder Rim:

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod Exit Device
Grade Heavy duty
Mounting Surface mounted
Trim Night Latch Thumbpiece Trim 990TP:
- Key locks and unlocks thumbpiece
Handing Non-handed except when used with SD - Special Dogging or SS - Single Switch options
Door Thickness 1-3/4" and 2-1/4" with standard centerlines
Door Height 7' (standard)
Dogging Feature Hex key dogging standard
Strike - Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Top Rod Length 34-15/16"
Bottom Rod Length 31-1/4"
Door Undercut 1/4"
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device 39-5/8"
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Surface Mounted Vertical Rod Device with Thumbpiece Trim

Surface Vertical Rod Exit Device Adjustment thumbnail

Surface Vertical Rod Exit Device Adjustment
