Von Duprin Special Order Passage Escutcheon Breakaway Lever trim for 98/99 Series Exit Devices Special Orders

Von Duprin 996L-BE-M-US26D-LAT

Special Order Passage Escutcheon Breakaway Lever trim for 98/99 Series Exit Devices

Quick Product Details

Blank Escutcheon BreakawayTM Lever Trim
Used With: 98/99 series exit devices

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 996L-BE-M-US26D-LAT

Choose Options Below

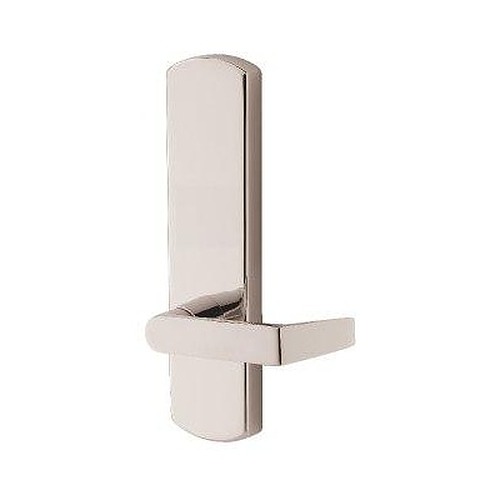

This Von Duprin 996L-BE-26D is a blank escutcheon breakaway lever trim for 98/99 series exit devices. The lever is always operable and it requires no cylinder. It is supplied with satin chrome finish. With Latitude (LAT) style lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

or for better pricing

Price: $400.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Exit Device Type:

Rim/Vertical Rod (R&V)

Mortise (M)

Help Me Decide

Available for Rim, Vertical Rod and Mortise Exit devices
Please specify what type of device this trim is for.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

Satin Chrome - 626

Overview

Special order non stock item with 4 week lead time
Quality:

Meets ANSI 156.3-2001 Grade 1 standards
3 year Limited warranty

Available Options: Choose Options Above

Exit Device Type:
Exit Device Type
Available for Rim, Vertical Rod and Mortise Exit devices

Please specify what type of device this trim is for.
- Rim/Vertical Rod (R&V)
- Mortise (M)
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Finish:
- Satin Chrome - 626

Product at A Glance

The Breakaway™ design is especially effective in areas where vandalism to door hardware is a problem.
Breakaway feature is not available on the NL (night-latch) or DT (dummy trim) versions

Style	BreakawayTM Lever trim
Lever Style	Latitude (LAT)
Finish	Satin chrome (626)
Used With	98/99 series exit devices
Function	Blank Escutcheon Function: - Lever is always operable - no cylinder
Escutcheon	2-3/4" x 10-3/4" x 27/32"
Projection	2-7/8"
