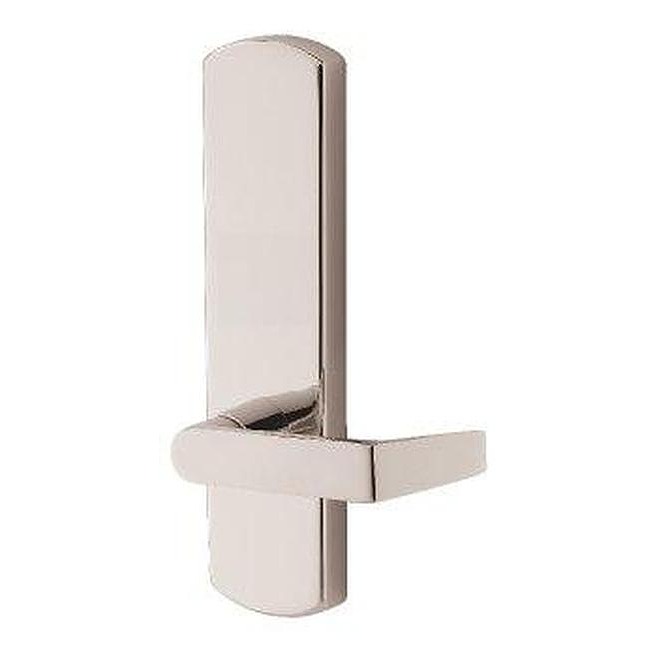

Von Duprin 996L-DT

Dummy Lever Trim for 98/99 series Exit Device

Quick Product Details

  • Lever Trim
  • Dummy Function
  • Used With: 98/99 series exit devices
SKU: 996L-DT

Price: $263.00 /each

Choose Options Below

This Von Duprin 996L-DT is a dummy function lever trim. Pull when the device is dogged into passage mode and the lever remains rigid at all times. Used with 98 and 99 series exit devices.

  • In Stock!
  • Order in the next 15 hours 53 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $263.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Oil Rubbed Bronze-613 + $9.00 Oil Rubbed Bronze-613 +$9.00
Satin Chrome-626 Satin Chrome-626

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special orders.



Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

Product at A Glance

Style Lever trim
Used With 98/99 series exit devices
Function Dummy Function:
- Pull when device is dogged
- Lever is always rigid
- ANSI 02
Handing Handed
Escutcheon 2-3/4" x 10-3/4" x 27/32"
Projection 2-7/8"
Finish Satin chrome (626)

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Dummy Lever Trim for 98/99 series Exit Device
