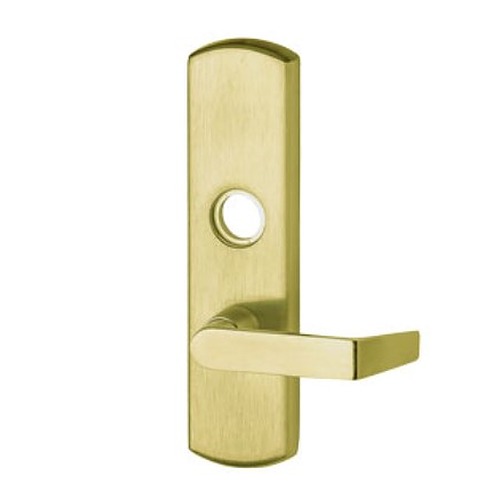

Von Duprin 996L-R/V-06-606

Quality:

• Meets ANSI 156.3-2001 Grade 1 standards
• 3 year Limited warranty

Special Orders Available:

• More unlisted finishes available

Contact us directly to place your special orders.


Available Options: Choose Options Above

• Finish:

  • US4 (606) Satin Brass

• Exit Device Type:

  Exit Device Type

  ×

  • Available for Rim, Vertical Rod and Mortise Exit devices
  • Please specify what type of device this trim is for.

  Close
  • Rim/Vertical Rod (R&V)
  • Mortise (M)

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR

• Cylinder:

  Cylinder

  ×

  • Rim/Vertical Rod Device (R&V) Requires a Rim Cylinder, Not Included.
  • Mortise Device (M) Requires a 1-1/4" Mortise Cylinder, Not Included.

  Close
  • QH200 - Rim Cylinder Schlage C Keyway
  • QH114 - 1-1/4" Mortise Cylinder Schlage C Keyway
  • No Cylinder Needed
