Von Duprin 9975L-NL

Mortise Lock Exit Device With Night Latch Lever Trim

SKU: 9975L-NL

Price: $1,309.00 /each

Choose Options Below

Von Duprin 9975L-NL Mortise lock exit device for all types of single or double doors. Device with nigh latch lever trim function-key retracts latch lever remains locked.

  • In Stock!
  • Order in the next 37 hours 55 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,309.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D (626) Satin Chrome US26D (626) Satin Chrome

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

3 FT
4 FT +$11.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Mortise cylinder:

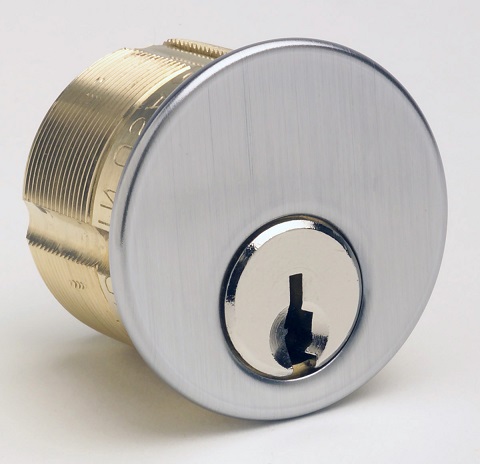

1-1/4' Mortise Cylinder Schlage "C" Keyway +$12.00
No Mortise 1-1/4" Cylinder

Help Me Decide

Keyed cylinder with 2 keys. Schlage "C" keyway.

Overview

  • Exit device with night latch lever trim.
  • With 996L-NL lever trim. Key retracts latch. Lever remains locked.
  • Lever requires a 1-1/4" mortise cylinder, not included.
  • For all types of single or double doors.
  • Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4"
  • The 7500 Mortise lock is equipped with a 3/4" anti-friction latch bolt which is field reversible without removing the lock from the door.  It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
  • Strike- #575 – Dull black finish
  • Hex key dogging standard

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Mortise cylinder: info icon

    • 1-1/4' Mortise Cylinder Schlage "C" Keyway
    • No Mortise 1-1/4" Cylinder
  • Device Lengths 3’, 2’4" to 3’ door opening, 4’, 2’10" to 4’ door opening.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • UL listed for Panic Exit Hardware.
  • Device Centerline from Finished Floor -39-5/8"
  • Center Case Dimensions -8" x 2-3/4" x 2-3/8"
  • Mechanism Case Dimensions 2-1/4" x 2-1/4 "
  • Projection Pushbar Neutral – 3-13/16" Pushbar Depressed – 3-1/16"


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Mortise Lock Exit Device With Night Latch Lever Trim
