Von Duprin 99L-2-996L-06-3FT

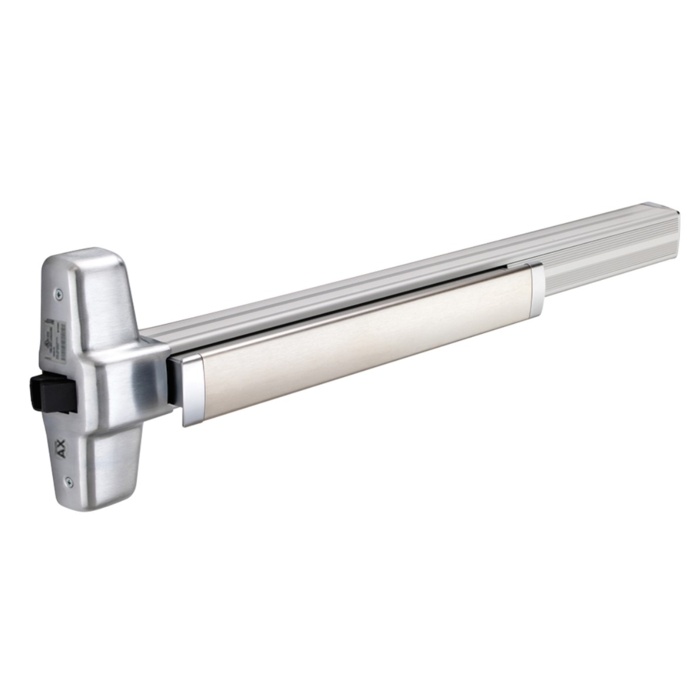

Special Order Double cylinder Rim Exit Device with Lever

Quick Product Details

  • Double cylinder rim exit device.
  • Includes 996L lever trim

or for better pricing

Price: $1,919.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 99L-2-996L-06-3FT

Choose Options Below

Double cylinder rim exit device. It features an inside key control cylinder which locks or unlocks the outside trim without having to open the door. The outside cylinder retracts the latch for exterior entry when the device is locked. This device requires two rim cylinders for a complete installation.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was purchased from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,919.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose EL (Electric Latch Retraction):

3FT QEL- Quiet Electric Latch Retraction (958003-00) +$781.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum

Choose Rail Size:

3 FT
4 FT +$16.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview

Note: this device is handed - select handing when ordering. Each device also requires two rim cylinders for proper installation and operation.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • EL (Electric Latch Retraction): info icon

    • 3FT QEL- Quiet Electric Latch Retraction (958003-00)
    • No EL (Electric Latch Retraction)
  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
