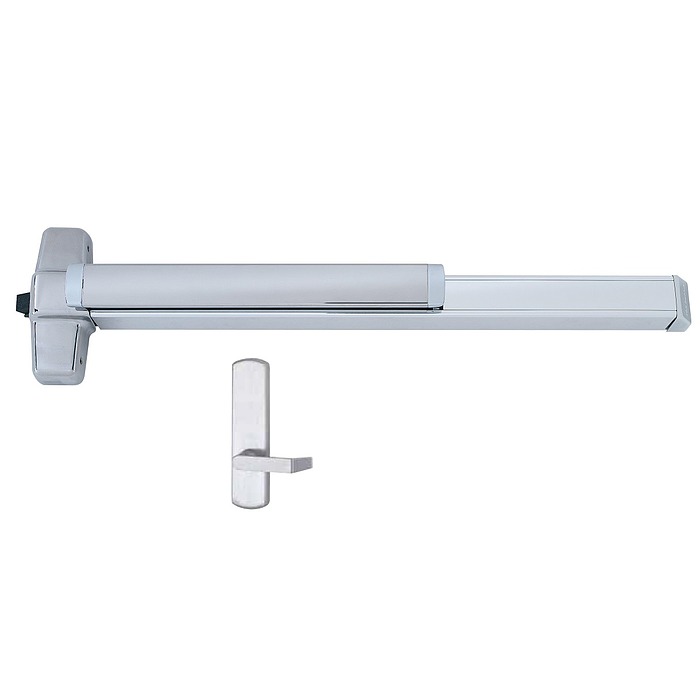

Von Duprin 99L-BE

Rim Exit Device with Passage Lever Trim and Blank Escutcheon

Price: $1,727.00 /each

SKU: 99L-BE

Choose Options Below

Exit device with blank Escutcheon, passage lever trim.

Stock Item
Order in the next 2 hours 21 minutes to ship TODAY
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

or for better pricing

Price: $1,727.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

US28 Anodized Aluminum

US26D Satin Chrome +$130.00

Choose Rail Size:

3 FT

4 FT +$17.00

Help Me Decide

3’ rail for 28” to 36”’ door width
4’ rail for 34” to 48” door width

Choose Fire Rated:

UL Fire Rated Exit Device +$190.00

Non Fire Rated

Help Me Decide

UL listed for fire exit hardware.

Choose VD Alarm kit 33/99:

No Alarm Kit

3 +$599.00

4 +$599.00

Help Me Decide

ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening.
The ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated.
Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
The unit operates on one standard 9-volt alkaline battery
When the ALK is used, standard dogging is removed.

Overview

With 996L-BE passage lever trim. Blank escutcheon, lever always active, door always unlocked no cylinder.
For all types of single and double doors with mullion.
For doors 1-3/4" to 2-1/4" thick.
Dogging Feature- Hex key dogging standard.
Device Lengths 3’- 2’4" to 3’ door size, 4’- 2’10" to 4’ door size.
Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
Strike- 299 – Dull Black.
Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Finish:
- US28 Anodized Aluminum
- US26D Satin Chrome
Rail Size:
Rail Size
3’ rail for 28” to 36”’ door width

4’ rail for 34” to 48” door width
- 3 FT
- 4 FT
Fire Rated:

Fire Rated

UL listed for fire exit hardware.
- UL Fire Rated Exit Device
- Non Fire Rated
VD Alarm kit 33/99:
VD Alarm kit 33/99
ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening.

The ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible
means of signaling that the opening has been violated.

Requires a 1-1/4" mortise cylinder to arm/disarm, not included.

The unit operates on one standard 9-volt alkaline battery

When the ALK is used, standard dogging is removed.
- No Alarm Kit
- 3
- 4

More Info

UL listed for Panic Exit
ANSI A156.3 – 2001 Grade 1.
Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
Mechanism Case Dimensions- 2-1/4" x 2-1/4"
Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
Available as a special order in other finishes and with RX,LX, or SS swithches. Call us directly to arrange your special order.
