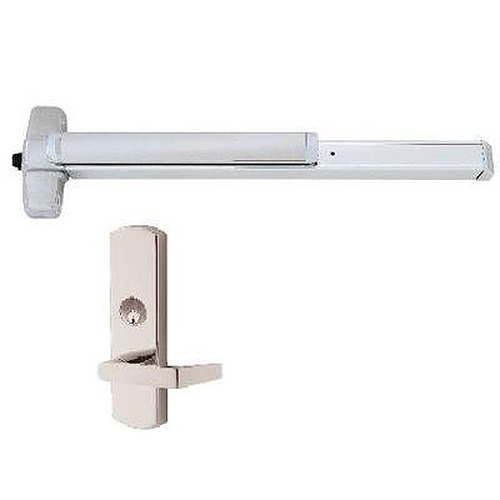

Von Duprin 99L-NL-US26DAM

Special Order Rim Exit Device with Night Latch Lever Trim and with Antimicrobial Coating

Quick Product Details

  • Rim Exit Device
  • With Night Latch Lever Trim
  • Heavy Duty
  • Finish-US26DAM Satin Chrome with Antimicrobial Coating
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 99L-NL-US26DAM

Choose Options Below

This Von Duprin 99L-NL-US26DAM exit device with night latch function that meets ANSI 156.3-20001 Grade 1 standards.With antimicrobial coating. By protecting high-touch surfaces with an antimicrobial coating, the number of bacteria that cause infections are reduced and environments where we heal, learn, work and eat are safer.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,756.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order non stock item with 14 week lead time
High traffic, public use areas are ideally suited to antimicrobial coated door hardware. With hundreds or thousands of people using accessing these areas every day, safety should be top of mind. Adding door hardware with an antimicrobial coating can make a big difference by inhibiting the growth of bacteria on these high-touch surfaces. Not effective against viruses.







Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

  • Meets ANSI 156.3-2001 Grade 1 standards for all types of single and double doors with mullion
  • UL listed for fire exit hardware.
  • Quiet operation.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
  • Rim cylinder required for night latch function, not included.
Antimicrobial coating Antimicrobial coating is one approach to improving the cleanliness of frequently touched hardware surfaces. Features a silver ion antimicrobial coating to inhibit the growth of bacteria and molds..
Style Rim exit device
Grade Heavy duty
Trim Night latch lever trim - 996L-NL Key retracts latch bolt. Lever Always Locked
Handing Handed
Dogging Feature Hex key dogging standard
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"

Reviews

Q&A

Videos

How to Install Von Duprin 98/99 Rim Exit Device thumbnail

How to Install Von Duprin 98/99 Rim Exit Device
