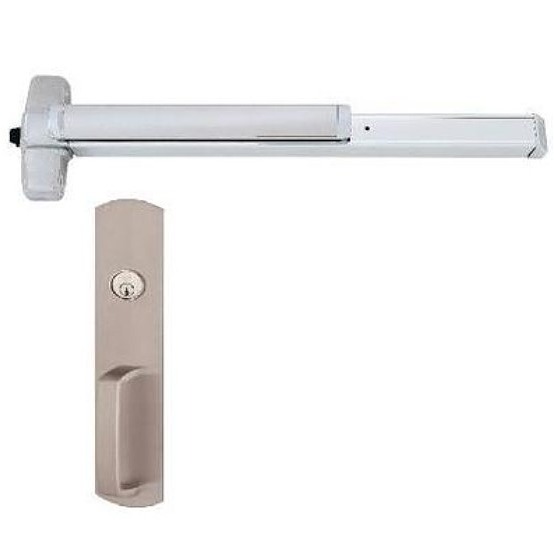

Von Duprin 99NL-4FT-628-DT2

Special Order Rim Exit Device with Night Latch Pull Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Pull Trim
  • Heavy Duty
  • For doors with a 2in thickness
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 99NL-4FT-628-DT2

Choose Options Below

This Von Duprin 99NL rim exit device is a Grade 1, heavy duty product supplied with the night latch pull trim. When in the neutral position the pushbar projects 3-3/16" and when it is depressed it projects 3-1/16". Supplied with 299 strike in dull black. This special order is made for doors with a 2" thickness, supplied for a 4FT wide door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,396.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

4 FT

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $15.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$15.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum

Choose Fire Rated:

UL Fire Rated Exit Device +$182.00
Non Fire Rated

Help Me Decide

UL listed for fire exit hardware.

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$977.00
4FT EL- Electric Latch Retraction (050078) +$977.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Overview

Non-Stock Special Order with a 4-6 week lead time

99NL Exit devices include 990NL trim.

Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for both fire exit hardware & exit hardware as applicable
  • 3 year Limited warranty
Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.



Available Options: Choose Options Above

  • Rail Size: info icon

    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • Finish:

  • Fire Rated: info icon

    • UL Fire Rated Exit Device
    • Non Fire Rated
  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)

Product at A Glance

  • For all types of single and double doors with mullion
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Trim Night latch Pull trim,
Key retracts latchbolt, door remains locked
Handing Non-handed
Dogging Feature Hex key dogging standard on non fire rated devices
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Door Thickness 2" Thick Special Door Hardware Included
Door Size Made for doors up to 4FT wide
