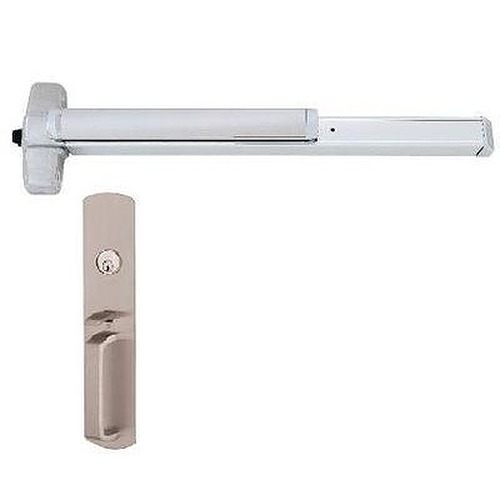

Von Duprin 99TP

Rim Exit Device with Thumbpiece Trim

Quick Product Details

  • Rim Exit Device
  • With Thumbpiece Trim
  • Heavy Duty

or for better pricing

Price: $1,523.00 /each

SKU: 99TP

Choose Options Below

This Von Duprin 99TP is a rim exit device with modern touchbar styling for heavy traffic applications. This device includes a thumbpiece function trim in which the thumbpiece can be locked and unlocked with use of a key.

  • Stock Item
  • Order in the next 1 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,523.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
US26D (626) Satin Chrome + $130.00 US26D (626) Satin Chrome +$130.00

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.


Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors with mullion
  • Available with EL (Electric Latch Retraction) option. The EL feature allows for the remote unlatching of exit devices.The EL option does not include the power transfer from door to frame, the power supply, or the control operator . Available in 3" size only
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Trim Thumbpiece trim - 990TP:
- Key locks and unlocks thumbpiece
Handing Non-handed except when used with SD (special dogging), -2 (double cylinder) or SS (signal switch) options
Dogging Feature Hex key dogging standard
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
