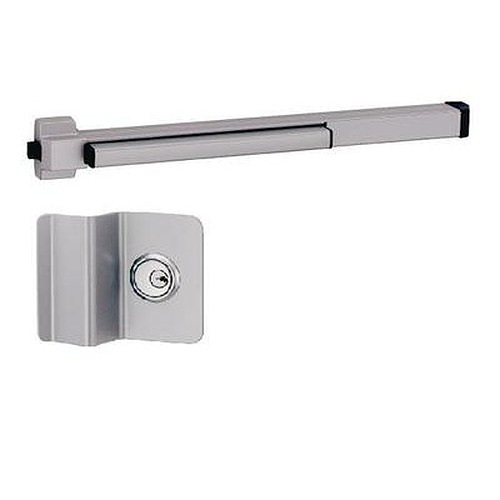

Von Duprin AX-22NL-3ft

Special Order Rim Exit Device with Night Latch Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Trim
  • AX-Accessible device compliant with the California Building Code requirement for 5 lb. maximum operational force
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: AX-22NL-3ft

Choose Options Below

This Von Duprin AX-22NL is a non-handed, standard duty night latch exit device for standard door thickness of 1-3/4". and door width of 3 FT. With AX option for 5 lb. maximum operation force.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

SP28 - Sprayed Aluminum SP28 - Sprayed Aluminum
SP313 - Sprayed Dark Bronze SP313 - Sprayed Dark Bronze

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $12.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$12.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Non stock special order item with 4 week lead time
Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Dogging Feature - Non-fire rated: 299 ( black - finish)mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"
Style Rim exit device
Trim Night latch trim - 210NL:
- Key retracts latch
Handing Non-handed
Door Thickness 1-3/4" Standard
Door Width 3FT Device for 2' 4" - 3' Door

More Info


This Von Duprin rim exit device is designed to cover stock hollow metal door with 161 cutouts. It will suit all types of single doors and double doors with a mullion in standard duty applications. This 22NL device is operated with the night latch function, where a key in the cylinder will retract the deadlocking latch to allow for entry.
