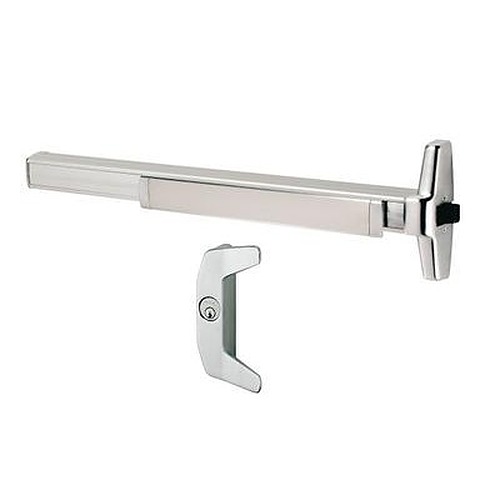

Von Duprin CD35A-NL-3-US28

Special Order Rim Exit Device with Night Latch Trim and Cylinder Dogging

or for better pricing

Price: $1,888.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: CD35A-NL-3-US28

Choose Options Below

Von Duprin CD35A-NL, narrow stile exit device with night latch trim and cylinder dogging for door stiles as narrow as 1-3/4". For all types of single and double doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,888.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose 1-1/4" Mortise Cylinder:

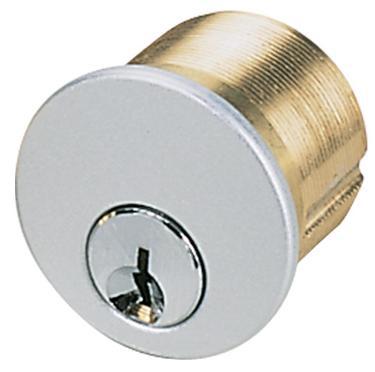

Satin Chrome 1-1/4 Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway +$17.00
No Mortise Cylinder

Help Me Decide

  • Includes 2 keys

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order item with 14 week lead time
  • Narrow stile device with 386NL night latch trim.
  • With cylinder dogging, requires A Rim cylinder not included.
  • For 3ft wide narrow stile doors.
  • 35A Series features smooth mechanism case.
  • Night latch function,key retracts latch, door remains locked. Requires a 1-1/4" mortise cylinder, not included.
  • Night latch requires a rim cylinder, not included.
  • For aluminum stile glass doors with stiles as narrow as 1-3/4"
  • For doors 1-3/4" thick standard
  • Strike- 1439 – dull black finish
  • Latch Bolt- deadlocking, 3/4" throw

Available Options: Choose Options Above

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • 1-1/4" Mortise Cylinder: info icon

    • Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway
    • No Mortise Cylinder
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Device lengths- 3’- 2’ 4" to 3’ Door Size.
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Device centerline from finished floor-- 39-13/16"
  • Finished floor 39-11/16"
  • Mechanism case dimensions 2-1/4" x 2-1/4"
  • Center case dimensions- 8 -3/16" x 2-13/32" x 1-9/16”
  • Projection pushbar neutral – 3-13/16"
  • Pushbar depressed – 3-1/16"
