Von Duprin CD99NL-OP-ALK-PA-CON-3FT-626

Special order item with 3-6 week lead time

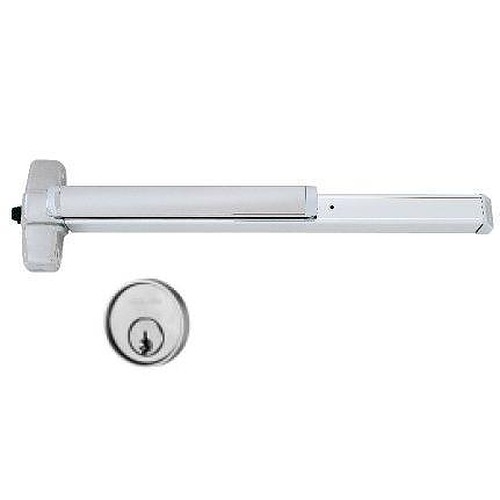

• Exit device with night latch trim and cylinder dogging.
• Cylinder dogging requires a 1-1/4" mortise cylinder not included.
• With 110MD trim for metal doors, specify if 110WD for wood doors is required.
• Alarm Kit included
• Pushbar Armor included
• Allegion Connect compatible
• Satin chrome finish.
• For all types of single and double doors with mullion.
• Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
• Strike- 299 – Dull Black.
• Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

• Rail Size:

  Rail Size

  ×

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

  Close
  • 3 FT
  • 4 FT

• Cylinder Rim:

  Cylinder Rim

  ×

  • Rim cylinder includes 2 keys.

  Close
  • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
  • No Rim Cylinder Needed

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR

• Door Material:

  • Metal Door
  • Wood Door (Optional)
