Von Duprin CX99EO-26D

Special Order Chexit Rim Exit Exit Device

or for better pricing

Price: $2,181.00 /each
Special Order non-stock item Requires 4 week lead time

SKU: CX99EO-26D

Choose Options Below

The Von duprin CX99EO is designed for use on delayed exit applications, the Chexit system is ideal for controlled areas. The Chexit system will keep an exit door secured for a 15 second period, yet tied into the fire alarm system will release immediately when an alarm condition exists.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $2,181.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$12.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder:

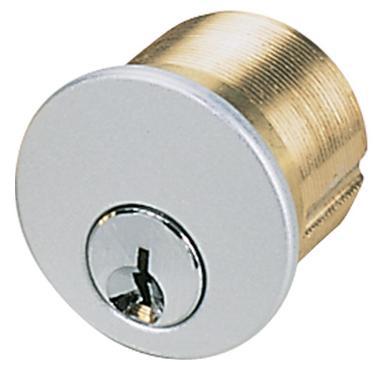

QH114 - 1-1/4 QH114 - 1-1/4" Mortise Cylinder Schlage C Keyway +$15.00
No Cylinder Needed

Help Me Decide

  • Rim/Vertical Rod Device (R&V) Requires a Rim Cylinder, Not Included.
  • Mortise Device (M) Requires a 1-1/4" Mortise Cylinder, Not Included.

Overview

Special order item with 4 week lead time
  • Designed for use on delayed exit applications with 15 second delay standard.
  • All controls, auxiliary locking, local alarm, and remote signalling are self-contained in the Chexit.
  • Continuous Duty – 24VDC • Current Inrush – 1.25A• Current Holding – .390mA.
  • Satin chrome finish.
  • Requires a 1-1/4" mortise cylinder, not included.
  • For doors 1-3/4" thick.
  • Requires PS902 Power Supply for 1 CX device.

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder: info icon

    • QH114 - 1-1/4" Mortise Cylinder Schlage C Keyway
    • No Cylinder Needed

More Info

  • Non-handed.
  • Internal RX switch detects attempt to exit, applying less than 15lbs to the push pad will
    cause this switch to start an irreversible alarm cycle.
  • Nuisance alarm.
  • Remote alarm.
  • Key switch can arm, disarm or reset the Chexit.
  • Indicator lamp determines status of the Chexit
  • Door position input.
  • Fire alarm input.
