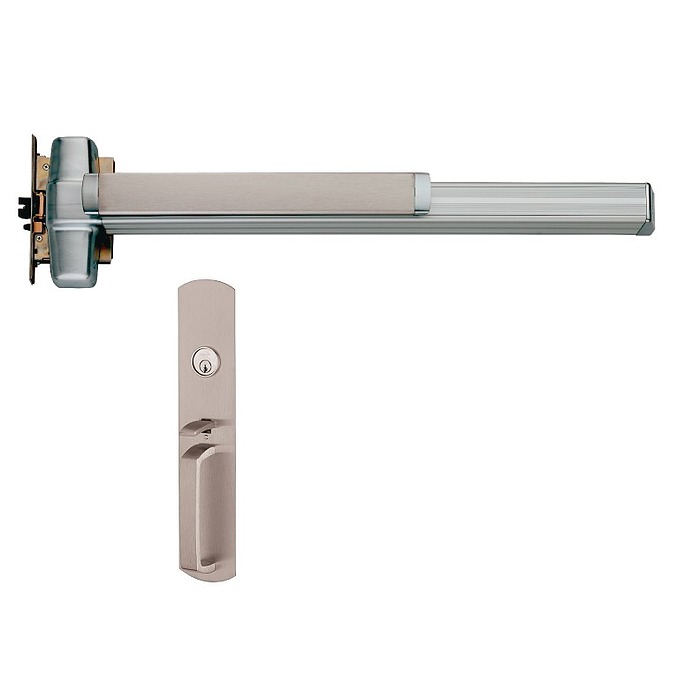

Von Duprin E9975TP-F-3FT-US28-FSE

Special Order Fire Rated Mortise Lock Exit Device with Electric Unlocking Thumbpiece Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: E9975TP-F-3FT-US28-FSE

Choose Options Below

Von Duprin E9975TP-F, Fire Rated Mortise Lock Exit Device with Electric Unlocking Thumbpiece Trim. Mortise lock exit device for all types of single or double doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Mortise cylinder:

1-1/4' Mortise Cylinder Schlage "C" Keyway +$19.00
No Mortise 1-1/4" Cylinder

Help Me Decide

Keyed cylinder with 2 keys. Schlage "C" keyway.

Overview

  • The electric mortise lock device has all the versatility and advantages of the standard mortise lock device, plus the
    advantage of being electrically controlled by a remote switching device, an access control system or an automatic fire alarm system.
  • The device features the E7500 mortise lock. The E7500 controls the locking of the outside trim.
  • 3' UL FIRE RATED device.
  • With Thumbpiece trim, Key locks and unlocks thunbpiece.
  • Thumbpiece requires a 1-1/4" mortise cylinder, not included.
  • Fail secure, unlocked when energized, locked when deenergized
    or during power failure.
  • 24 VDC continuous duty solenoid.
  • For all types of single or double doors.
  • Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4"

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Mortise cylinder: info icon

    • 1-1/4' Mortise Cylinder Schlage "C" Keyway
    • No Mortise 1-1/4" Cylinder

More Info

  • Device Lengths 3’, 2’4" to 3’ door opening.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • UL listed for Panic Exit Hardware.
  • Device Centerline from Finished Floor -39-5/8"
  • Center Case Dimensions -8" x 2-3/4" x 2-3/8"
  • Mechanism Case Dimensions 2-1/4" x 2-1/4 "
  • Projection Pushbar Neutral – 3-13/16" Pushbar Depressed – 3-1/16"
  • Strike- #575 – Dull black finish
  • Hex key dogging standard
