Von Duprin LD-WH-33A-NL-OP-3-26D

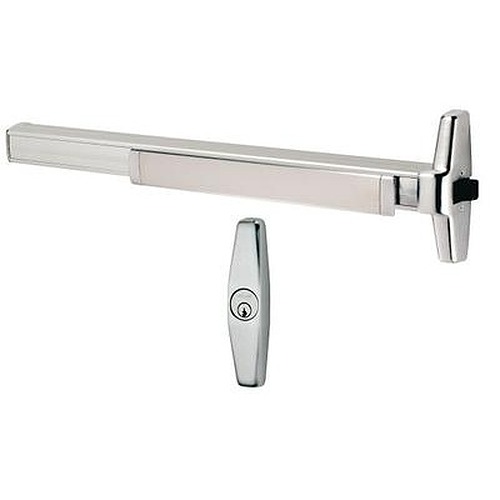

Special Order Narrow Stile Rim Exit Device with Night Latch Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: LD-WH-33A-NL-OP-3-26D

Choose Options Below

Von Duprin 33A-NL-OP, narrow stile exit device with night latch trim for door stiles as narrow as 1-3/4". For all types of single and double doors. Key retracts latch, re-locks when key is removed. Optional Pull Required.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 26D Satin Chrome - 26D

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $13.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$13.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order item with 4 week lead time.
  • Narrow stile device with 388 night latch trim, key retracts latch re-locks when key is removed. Optional Pull Required
  • Night latch requires a rim cylinder, not included.
  • WH-weep holes. Weep holes are ideal for devices that are mounted to exterior doors that can be exposed to rain and other elements.
  • For aluminum stile glass doors with stiles as narrow as 1-3/4"
  • For doors 1-3/4" thick standard
  • Strike- 1439.
  • LD, less dogging .
  • Latch Bolt- deadlocking, 3/4" throw
  • Satin chrome finish.

Available Options: Choose Options Above

  • Finish:

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

More Info

  • Device lengths- 3’- 2’ 4" to 3’ door size.
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Device centerline from finished floor-- 39-13/16"
  • Finished floor 39-11/16"
  • Mechanism case dimensions 2-1/4" x 2-1/4"
  • Center case dimensions- 8 -3/16" x 2-13/32" x 1-9/16”
  • Projection pushbar neutral – 3-13/16"
  • Pushbar depressed – 3-1/16"
