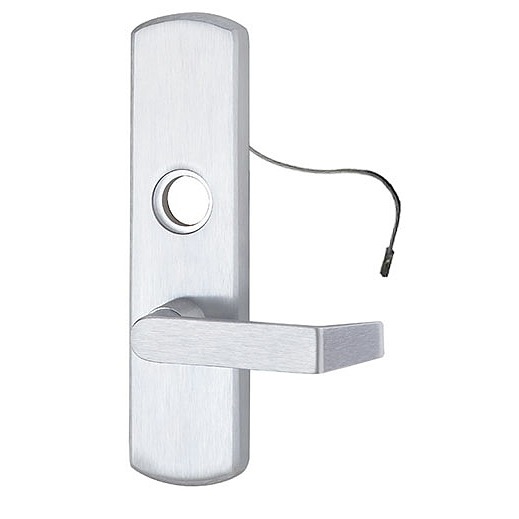

Von Duprin M996L-CON

Motor Driven Breakaway Lever Trim

Quick Product Details

  • Motor Driven Breakaway Lever Trim with 06 Style Lever
  • Used With: 98/99 series Rim ,Vertical Rod and Mortise Exit Devices
  • Field selectable dip switch for either Fail Safe (FS) or Fail Secure (FSE) functionality
  • With Allegion Connect -CON

or for better pricing

Price: $927.00 /each

SKU: M996L-CON

Choose Options Below

This Von Duprin M996L is motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design. . It is suited for use with 98/99 series exit devices and concealed vertical devices.

  • Stock Item
  • Order in the next 19 hours 17 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $927.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome
SP313 Sprayed Duranodic SP313 Sprayed Duranodic

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder:

QH200 - Rim Cylinder Schlage C Keyway + $14.00 QH200 - Rim Cylinder Schlage C Keyway +$14.00
No Cylinder Needed

Help Me Decide

  • Rim/Vertical Rod Device (R&V) Requires a Rim Cylinder, Not Included.

Overview

  • Field-reversible handing
  • Either 12VDC or 24VDC field selectable.
  • Furnished Fail Safe (FS); convertible to Fail Secure (FSE) via dip switch.
  • Allegion Connect-CON is a quick and easy way to connect power sources. There is no wire cutting; reducing installation and maintenance time .
  • Connectors on one end, stripped leads on the other end.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Cylinder: info icon

    • QH200 - Rim Cylinder Schlage C Keyway
    • No Cylinder Needed

Product at A Glance

  • Motor driven Breakaway lever trim provides remote locking and unlocking capabilities while incorporating patented Breakaway trim design.
  • Rim cylinder required - not included
  • When electrically is locked, the lever feels locked, when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.
  • The 12V/24VDC motor can be energized from a distant controller, thus allowing access control of the opening.
  • Shipped standard as fail safe (FS), but can be field converted to fail secure (FSE) where allowed.Connectors on both ends.
  • 24VDC FSA 0.08 amp in-rush*, 0.01 amp holding
    24VDC FSE 0.59 amp in-rush*, 0.01 amp holding
    12VDC FSA 0.13 amp in-rush*, 0.01 amp holding
    12VDC FSE 1.12 amp in-rush*, 0.01 amp holding
Device Type R/V/M, Rim/,Surface or Concealed Vertical Rod/Cable or M Mortise
Style Breakaway Lever trim with 06 Style Lever
Vandal Resistant The vandal-resistant breakaway feature engages when more than 35 lbs. of torque pressure is applied to the locked lever. In breakaway mode, the lever dangles, internal components are protected from breakage, and the trim remains locked. Lever position is restored simply by pulling up on the lever.
Used With 98/99 series exit devices
Function Night Latch Function:
- Key retracts latchbolt
- Lever remains rigid
Escutcheon 2-3/4" x 10-3/4" x 27/32"
Projection 2-7/8"
Motor Driven Dual voltage-works with either 12VDC or 24VDC power supplies
Power Drawe 0.22 amp.
