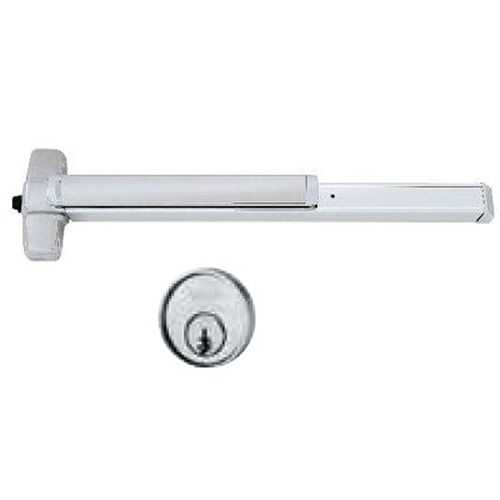

Von Duprin OUT-98EO-626

Special Order 98 series Rim Exit Device with Night Latch

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: OUT-98EO-626

Choose Options Below

Von Duprin 98NL-OP, rim exit device with night latch cylinder. Optional pull required. Night Latch function- key retracts latchbolt.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Same-Day Shipping*When ordered before 2PM ET

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$11.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview


Special order non stock item with 4 week lead time.
  • Rim exit device with night latch cylinder. Optional pull required.
  • Satin stainless steel finish.
  • Rim cylinder not included for night latch trim.
  • For all types of single and double doors with mullion.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
  • Strike- 299 – Dull Black.
  • Dogging Feature- Hex key dogging standard.
  • Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT

More Info

  • UL listed for Panic Exit
  • ANSI A156.3 – 2001 Grade 1.
  • Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
  • Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
  • Mechanism Case Dimensions- 2-1/4" x 2-1/4"
  • Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
