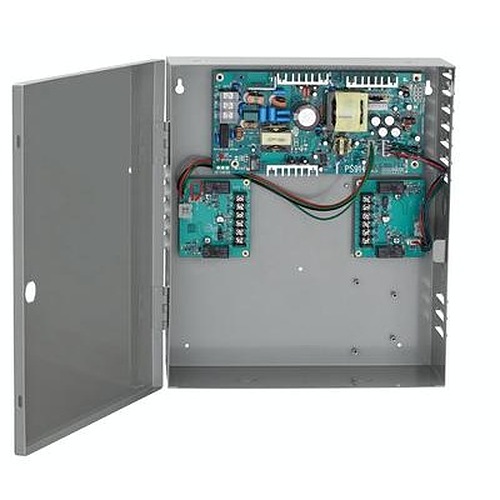

Von Duprin PS914-2RS

Power Supply for EL Exit Devices

Quick Product Details

  • Designed with high inrush current for powering electrified panic devices
  • Used With: Von Duprin EL exit devices
  • Output 4A @ 12/24 VDC - field selectable with jumper
Price: $685.00 /each

SKU: PS914-2RS

This Von Duprin PS914-2RS is the only power supply designed to operate Von Duprin exit devices equipped with the EL (electric latch retraction) option.

Because field conditions vary and wiring applications are not certified, power supplies cannot be returned.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Shipping
  • ×
    Getting shipping methods...

Have a question about this product?

Product at A Glance

  • Designed with high inrush current for powering electrified panic devices
  • This power supply is equipped with the 900-2RS: 2 Relay EL panic device control board
  • Installation is simplified by utilizing a flat mounting design and
    polarized locking connectors for option boards.
  • Controls 1 or 2 EL devices
  • Low voltage DC, regulated and filtered
  • Includes two polarized connectors for distribution boards
  • AC status monitor - isolated SPDT contacts
  • Features AC input and DC output LED status indicators
Output 4A @ 12/24 VDC - field selectable with jumper
Style Electric power transfer
Used With Von Duprin Electric latch retraction exit devices
Enclosure 14" H x 12" W x 4" D, Eight 1/2" x 3/4" knockouts
Input Universal 120-240 VAC

More Info

This power supply is the only one available to operate the Von Duprin exit devices that feature the electric latch retraction option. It can control either one or two exit devices. It features LED signals which will indicate the status of the device.
