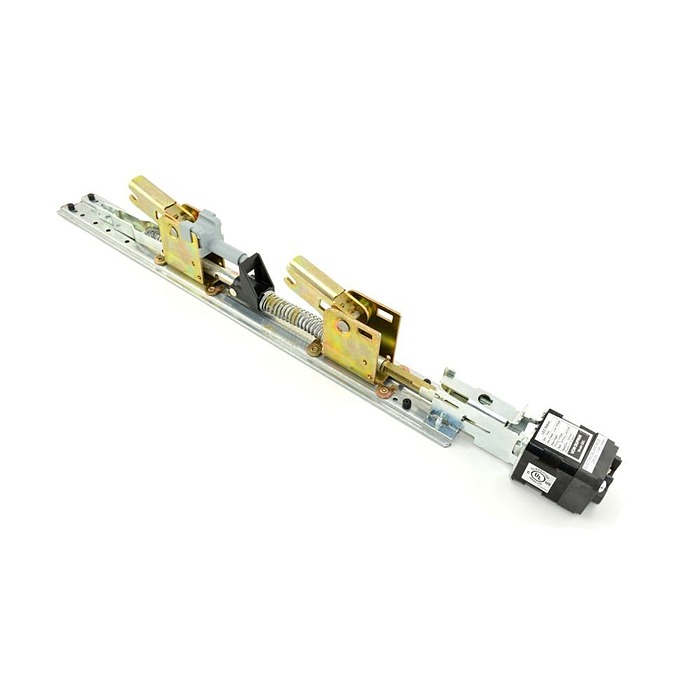

Von Duprin QEL Kit

QEL Field Installation Kit

or for better pricing

Price: $794.00 /each

SKU: QEL Kit

Choose Options Below

Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users.

  • Stock Item
  • Order in the next 16 hours 41 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $794.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3FT 958003-00
4FT 040065-00

Overview

  • Field install motor driven quite latch retraction.
  • Quiet operation in both mechanical and electronic states.
  • Energy efficient motorized latch retraction utilizes standard 2 amp power supply, enabling longer wire runs from power source.
  • On-board installation and troubleshooting diagnostics built into device.
  • Auto adjust latch retraction – automatically adjusts latch throw and pull.
  • Voltage 24 VDC.
  • Current 1.0 A Inrush (0.5 sec) 0.14 A Holding.
  • Requires  a power supply and 900-2RS option board designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. Not included.

Available Options: Choose Options Above

  • Rail Size:

    • 3FT 958003-00
    • 4FT 040065-00

Product at A Glance

QEL KIT Von Duprin 33A/35A/98/99 series rim, mortise and vertical rod exit devices

More Info

  • Devices are BHMA Certified to ANSI/BHMA A156.3 (2001) Grade 1 for Exit Devices.
  • Devices are UL and cUL Listed as “Panic Hardware”  (UL 305) and as “Fire Exit Hardware” (UL 10C).
  • The QEL Conversion Kit is UL Classified under “Accessories for Single-Point Locks and Latches and Fire Exit Hardware” (UL 10C).
