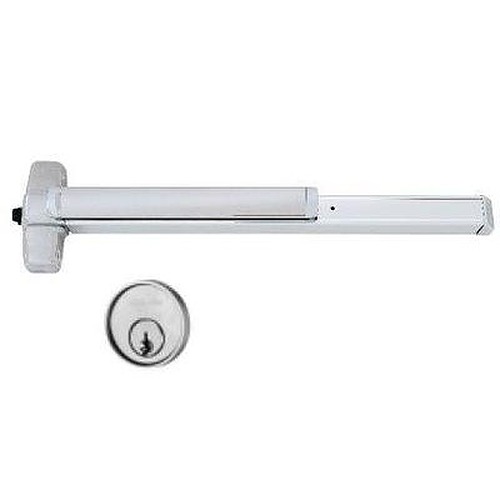

Von Duprin RX-LC-QEL-99NL-OP-CON-626-3FT

Special Order Rim Exit Device with Quiet Electric Latch Retraction and Night Latch Cylinder Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Cylinder Trim
  • Heavy Duty

or for better pricing

Price: $2,239.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: RX-LC-QEL-99NL-OP-CON-626-3FT

Choose Options Below

This Von Duprin 99NL-OP is an exit device with the night latch trim in which a key will retract the latchbolt and an optional pull is required. This device is designed with a special fluid dampener which will decelerate the push bar when it returns to its standard position to eliminate any noise.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $2,239.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D (626) Satin Chrome US26D (626) Satin Chrome

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $18.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$18.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

  • Special Order Non-Stock Item with 10-12 Week Lead Leadtime
Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors with mullion
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
  • Supplied with QEL (Quiet Electric Latch Retraction) option. The QEL feature allows for the remote unlatching of exit devices.The QEL option does not include the power transfer from door to frame, the power supply, or the control operator . Available in 3ft size only
  • Supplied with RX-LC (Request to Exit, Low Current) option. The RX-LC switch monitors the exit device‚Äôs touchbar and signals the door opening from the push side.
  • Supplied with CON (Connector) option. The CON option gives the wires a quick-disconnect function that allows for the connection with only a snap of a clip. This product ties in with the Allegion Connect line.
Style Rim exit device
Grade Heavy duty
Trim Night Latch Trim:
- Key retracts latchbolt, door remains locked
- Optional pull required
Handing Non-handed except when used with SD (special dogging), -2 (double cylinder) or SS (signal switch) options
Dogging Feature Hex key dogging standard
Connector,Switch CON option - Allegion CONNECT compatible,RX-LC - Request to Exit, Low Current
Latch Bolt Quiet Latch Retraction
Switch RX-LC - Request to Exit, Low Current
