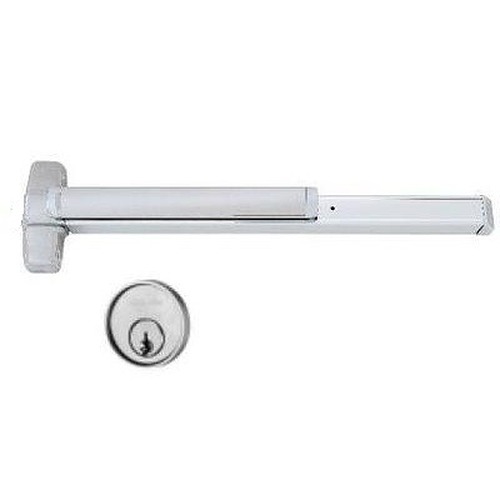

Von Duprin RX-QEL-9849-NL-OP-110MD -3-313

Special Order Concealed Vertical Cable Device with Night Latch Cylinder Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: RX-QEL-9849-NL-OP-110MD -3-313

Choose Options Below

Designed for use with Von Duprin 98/99 and 33/35A series exit devices, the concealed vertical cable system provides more secure protection for the opening, and delivers the streamlined aesthetics that architects and customers prefer. With night latch cylinder trim.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $2,274.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

313 Dark Bronze 313 Dark Bronze

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $14.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$14.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order non stock item with 4 week lead time
  • Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.
  • Concealed vertical cable device with QEL-Quiet electric latch retraction and RX switch.
  • Night latch cylinder assembly, optional pull required.
  • Door opening height- 82" - 96".Door opening height is distance from bottom of frame header to finished floor.
  • Vertical cable 7/32" diameter stainless steel cables.
  • For 3Ft wide doors.
  • Latch bolt-deadlocking top and bottom bolt, 1⁄2" (13mm) throw.
  • Finish-313-duranodic dark bronze.

Available Options: Choose Options Above

  • Finish:

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
