Von Duprin WP-RX-LD99NL-OP-110MD-WH-SEC-4FT-SNB-628

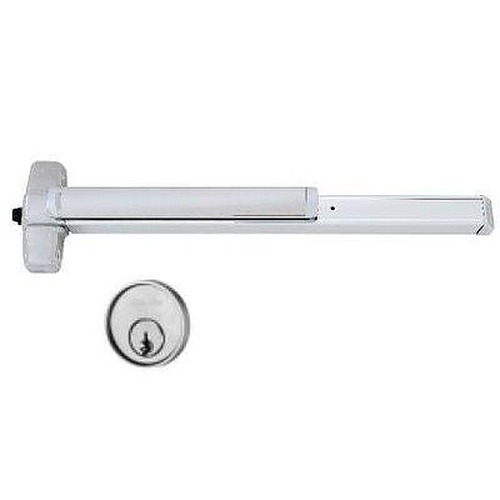

Rim Exit Device with Night Latch Cylinder Trim and Weatherproof RX

Quick Product Details

  • Rim Exit Device
  • With Night Latch Cylinder Trim
  • Weatherproof RX
  • Less Dogging.
  • For 4 Ft Wide Doors
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: WP-RX-LD99NL-OP-110MD-WH-SEC-4FT-SNB-628

Choose Options Below

This Von Duprin WP-RX-LD99NL-OP-110MD-WH-SEC-4FT-SNB-628 is an exit device with the night latch trim in which a key will retract the latchbolt and an optional pull is required. With Weatherproof RX, less dogging.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,195.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$12.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $14.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$14.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order non stock item with 4 week lead time
Quality:
  • For 4Ft wide doors.
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty




Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

Style Rim exit device
Grade Heavy duty
Trim Night Latch Trim:
- Key retracts latchbolt, door remains locked
- Optional pull required
Handing Non-handed except when used with SD (special dogging), -2 (double cylinder) or SS (signal switch) options
Dogging Feature Less Doging
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"

Reviews

Q&A

Accessories

Videos

How to Install Von Duprin 98/99 Rim Exit Device thumbnail

How to Install Von Duprin 98/99 Rim Exit Device
