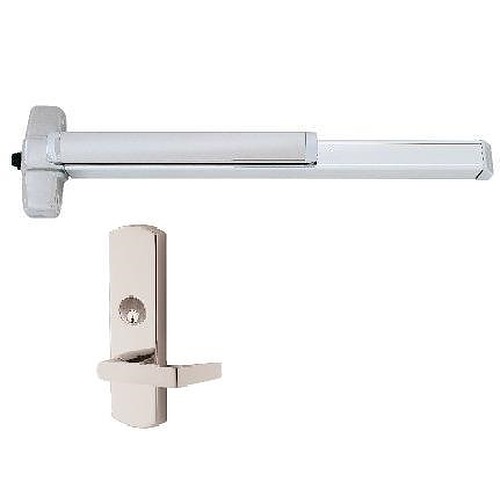

Von Duprin XP99L-26D

Special order item with 4 week lead time

• Rim exit device with locking lever trim. Key locks/unlocks lever.
• A fluid dampener decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations.
• New latchbolt design provides the industry’s most secure device.
• The XP latch provides twice the static load force resistance of standard exit devices.
• This design enables the exit door to withstand an external attack and remain secure.
• For all types of single and double doors with mullion that require increased security.
• Rim cylinder required, not included.
• Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
• Strike- 909 – Dull black.
• Dogging Feature- Hex key dogging standard.
• Latch bolt-deadlocking 3/4“ throw.

Available Options: Choose Options Above

• Rail Size:

  Rail Size

  ×

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

  Close
  • 3 FT
  • 4 FT

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
