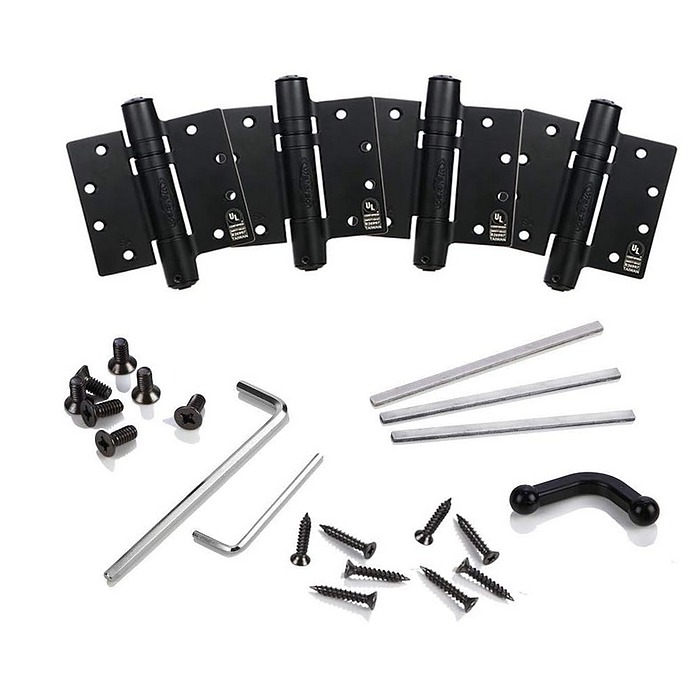

Waterson USA K51M-400-D4

Special Order 4 Pack Adjustable Self Closing Hinge 4" x 4"

Price: $459.00 /each

SKU: K51M-400-D4

Choose Options Below

Self-Closing Stainless steel hinge set, fully adjustable Grade 1. Replaces both hinges and overhead door closers in one small package.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • Order in the next 16 hours 39 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $459.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

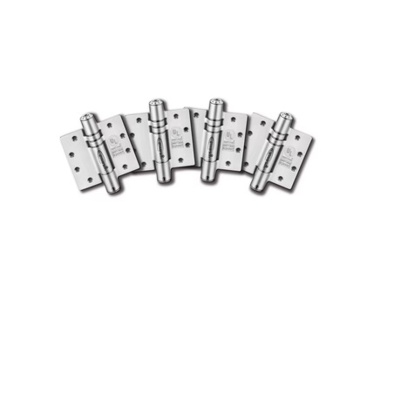

US32D - Satin Stainless Steel US32D - Satin Stainless Steel

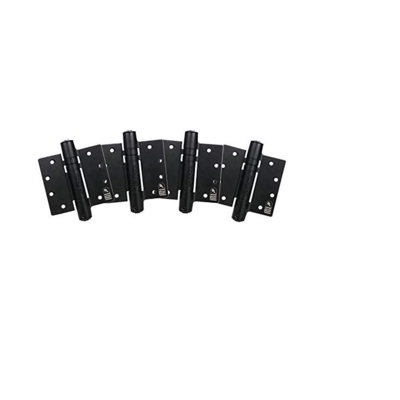

US19 - Flat Black Coated US19 - Flat Black Coated

Overview

K51M-400-D4 are designed to manage commercial closing demands while maintaining fluid and effective movement, particularly with obligatory fire rated doors. A typical 8'0 door utilizes four active Waterson Closer Hinges to create a perfect, self-closing system. Each hinge's unique numerical panel allows the spring tensions to adjust precisely according to door weight and environmental conditions.

Available Options: Choose Options Above

Product at A Glance

  • ANSI A156.17 Grade 1 : one million cycle testing
  • Door Weight Up to 330lbs
  • Door Thickness 1 ¾”.
  • Fully adjustable closing force and speed according to environment needs
  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.
  • 3Hr Fire-rated.
