Yale 1810-36-426F-AU-689

Special order non stock item with 4 week lead

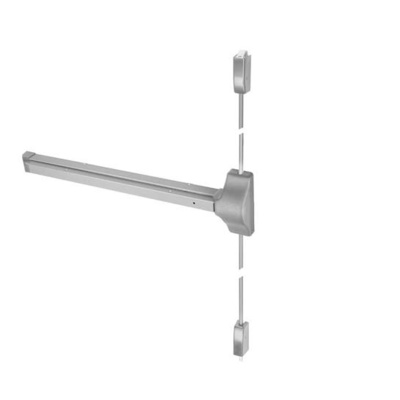

• Surface vertical rod exit device for 30" - 36" wide x 7' high doors.

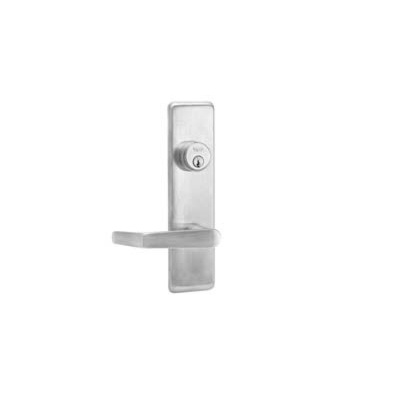

• With 426F classroom function escutcheon lever trim. Key locks/unlocks lever.  Rim cylinder not included.
• Designed for wide stile and flush doors.
• Handed, specify hand, field reversible.
• Metal or wood doors.
• Door thickness: 1-3/4" standard.
• 689-painted aluminum finish.
• ANSI/BHMA Grade 1 certified.
• One year warranty.

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
