Yale 2100-36-630

Special Order Rim Exit Device

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2100-36-630

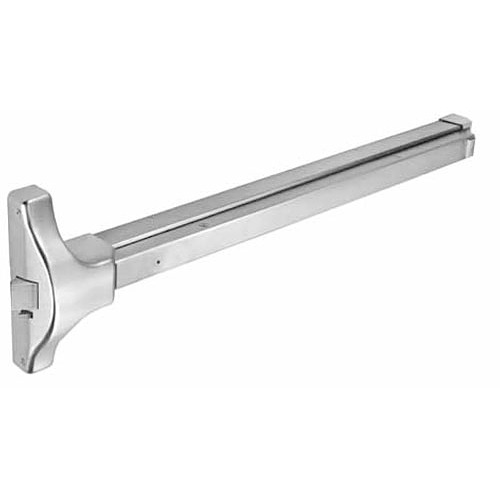

The Yale 2100 is a rim exit device that can be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100 can be paired with a wide variety of trims to meet many application requirements. It is non-handed and designed for wide stile doors. The Yale 2100 can be used with a standard rim cylinder alone or with a variety of exit device trims. These exit devices are supplied in a 630 satin stainless steel finish for 36" or narrower doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time
  • Exit only function, no outside lock or entry.
  • Designed for wide stile doors
  • Non-handed for easy installation
  • UL/ULC Listed as panic hardware
  • Deadlocking pullman style latchbolt positively engages the roller strike
  • Yale #793 double door strike required for double door applications
  •  Supplied in an satin stainless steel (630) for 3FT or narrower doors.

Product at A Glance

  • Hex key dogging supplied standard.
  • Door thickness: 1-3/4"  standard.
  • Minimum Stile Width: 4-1/2".
  • Latchbolt: 3/4" deadlocking stainless steel pullman-type.
  • ANSI/BHMA: Certified: A156.3 Type 1, Grade 1.
  • Door Opening Width: -36 for 30".
