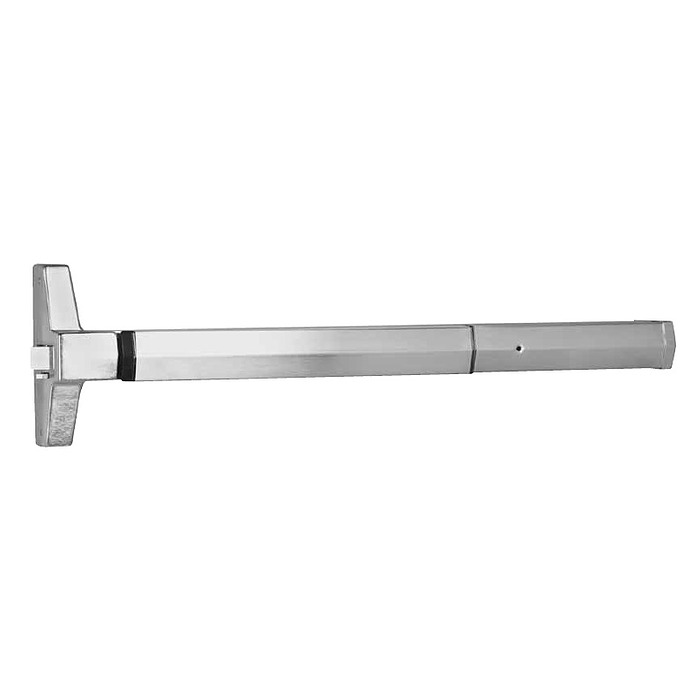

Yale 7200-MELR-36-630

Special Order Narrow Stile Rim Exit Device with Electric Latch Retraction

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7200-MELR-36-630

Choose Options Below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.


Special order non stock item with 12 week lead time
  • EO, Exit only function.
  • Designed for narrow stile doors.
  • MELR-Motorized Electric Latch Retraction.Allows the latchbolt to be retracted electrically for momentary or maintained periods of time from a remote location
  • 24VDC (BPS-24-1) regulated/filtered power supply. Requires 1A per device..65A amp max during retraction,.2 amp holding-continuous duty
  • Easy interface with central or local fire alarm systems, automatic door operators, and access control systems.
  • 3/4" throw deadlocking stainless steel pullman latch.
  • Non-handed for easy installation.
  • Door opening width-30" - 36"  doors.
  • Door Thickness: 1-3/4.
  • Minimum stile width: 2".
  • Satin stainless steel finish.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
