Yale 8801FL-26D

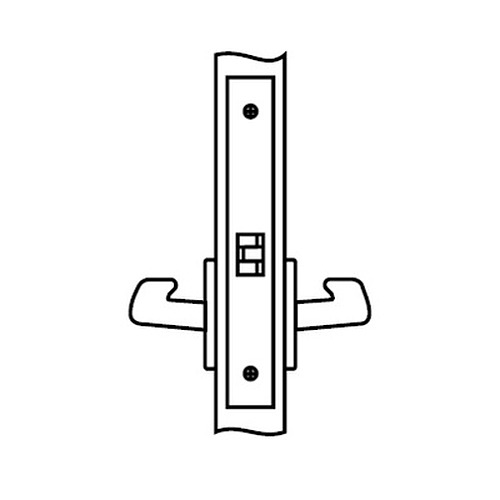

Passage Function Mortise Lock Body

Price: $288.00 /each

SKU: 8801FL-26D

Choose Options Below

The Yale 8801FL Passage function mortise lock body, This Yale mortise lock that is prepped for lever handles, provides security and reliability to any door. It is ideally suited for hospitals, schools & universities, office buildings and government facilities. This package includes a mortise lock body without the lever or Rose. Includes the strike and faceplate.

  • Stock Item
  • Order in the next 21 hours 35 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $288.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Overview


  • Satin chrome finish-626
  • Passage function mortise lock body- Lever from either side retracts latchbolt at all times. For doors that do not require locking.
  • Backset- 2-3⁄4".
  • For doors 1-3⁄4" thick.
  • Body is 4-1/8" deep x 5-1/16" high.

Available Options: Choose Options Above

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

More Info

  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • ANSI F01, 15 Passage function.
  • UL Listed safety standards for A label (3 hour fire door).
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
