Yale 8822FL-626

Dormitory Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Dormitory Function
Price: $365.00 /each

SKU: 8822FL-626

Choose Options Below

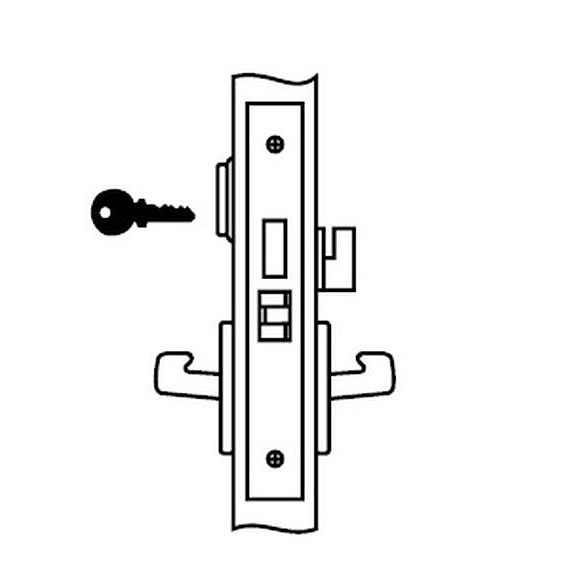

This Yale 8822FL is a heavy duty, high quality, reliable, dormitory function mortise lock. The latchbolt can be retracted by the knob or lever on either side and the deadbolt is operated by a key on the outside and thumbturn inside. When the deadbolt is projected the outside knob/lever is automatically locked.

  • Stock Item
  • Order in the next 18 hours 18 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $365.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Includes outside front and strike
  • Does not include the knob, lever or cylinder
Style Mortise Lock Body
Function Dormitory Function:
- Latchbolt retracted by knob/lever either side
- Deadbolt operated by key outside and thumbturn inside
- When the deadbolt is projected, outside knob/lever is automatically locked
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking the outside knob/lever.
Handing Handed - field reversible with same trim on both sides
Door Thickness 1-3/4"
Lock Body Size 4-1/8" D x 5-1/16"H x 1" W

More Info


The 8800 series Yale dormitory function mortise lock will faithfully serve you for many years without compromising on reliability and smooth performance. At Yale products are created, with you in mind, to meet the highest standards of quality and durability. The 8800 lock has successfully been proven to bring utmost satisfaction to all customers.
