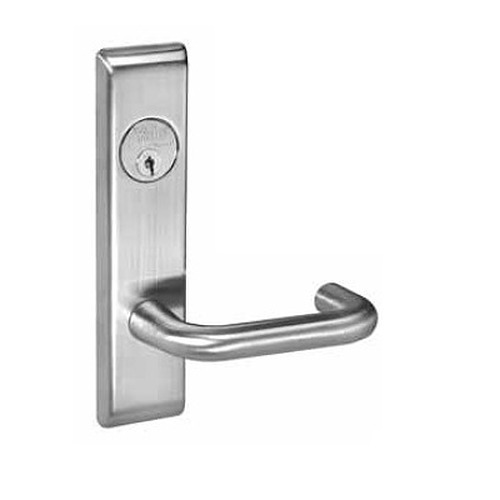

Yale 8840FL-CRCN-626

Special Order Complete Storeroom Mortise Lock

SKU: 8840FL-CRCN-626

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding?
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Special order with 4 week lead time
  • Single cylinder storeroom function with deadbolt.
  • With Carmel lever and Camden escutcheon.
  • Satin chrome finish-626.
  • Latchbolt retracted by key outside, lever inside.
  • Deadbolt operated by key outside and thumbturn inside.
  • Outside lever locked at all times.
  • Operating inside lever retracts the latchbolt and deadbolt simultaneously.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • Armor front - 8" x 1-1/4".
  • Door thickness - 1-3/4" standard.
  • Backset - 2-3/4" only.
  • Deadbolt - 1" throw.
  • Latchbolt - 3/4" throw, stainless steel.
