Yale 964-690

Special Order Adjustable Bracket for Arched or Circular Top Door

Quick Product Details

  • Adjustable Bracket
  • For Arched Or Circular Top Door
  • Used With: Yale 1900 Series Door Closers
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 964-690

Choose Options Below

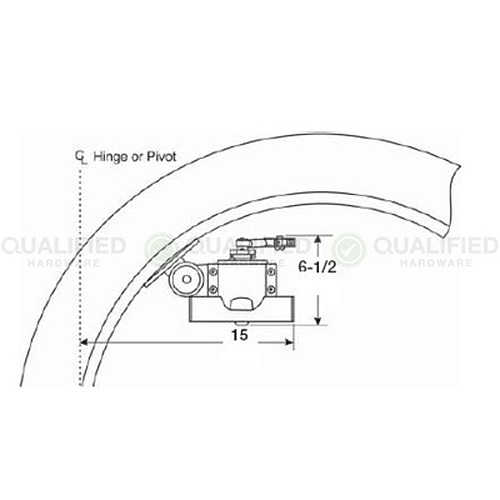

This Yale 964 adjustable bracket is for use on arched or circular top doors for the opposite hinge side applications (push side) with the 1900 series door closers.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose 690:

Dark Bronze Painted Dark Bronze Painted


Specil order non stock item with 4 wek lead time
  • This frame-mounted bracket can be adjusted to accommodate virtually any radius of frame.
  • Minimum soffit width 2-1/2"
  • This bracket requires the use of a door closer of the opposite hand from that of the door.

Available Options: Choose Options Above

  • 690:

    • Dark Bronze Painted

Product at A Glance

  • For use on arched or circular top doors for hinge side applications
  • This door-mounted bracket is adjustable to accommodate virtually any radius of frame
Used With Yale 1900 Series surface closers
Base Diameter 3-5/8"
Style Adjustable Bracket
Finish Dark Bronze Painted-690

More Info

Use the 964 Yale adjustable bracket with the 1900 series traditional door closers to accommodate your arched or circular top door. This bracket can be adjusted to adapt to almost any radius of frame.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
