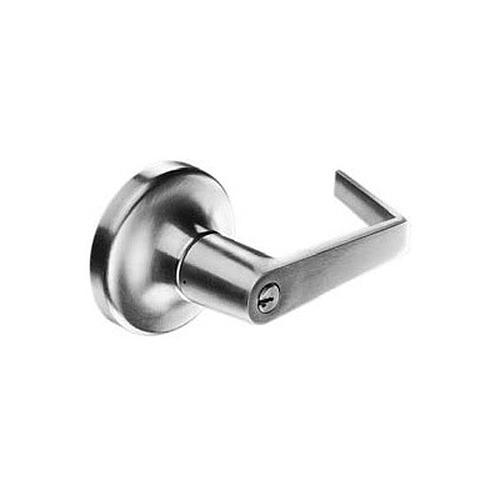

Yale AU5407LN

Heavy Duty Entry/Office Lock

Price: $471.00 /each

SKU: AU5407LN

Choose Options Below

Designed for industrial and commercial use, Yale 5407LN entry lock heavy-duty cylindrical entry lockset offers rugged reliability and performance.Free wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $471.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose Cylinder:

6 Pin Cylinder Keyed Cylinder 1802-26D-PARA
LC-Less Cylinder Subtract -($38.19)

Overview

  • ADA compliant for ease of accessibility,The 5400LN meets accessibility guidelines of the Americans with Disabilities Act.
  • All 5400LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
  • Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel
    latchbolt for exceptional strength and durability.

Available Options: Choose Options Above

  • Finish:

  • Cylinder:

    • 6 Pin Cylinder Keyed Cylinder 1802-26D-PARA
    • LC-Less Cylinder

Product at A Glance

Entry Function Either lever operates latchbolt except when outside lever is locked from inside.
-Pushing turn button in inside lever locks outside lever, and automatically releases when inside lever is turned or key is rotated in locked outside lever.
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
-Inside lever always active.
Cylinder 6 pin keyed different standard with two keys
Strike ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
Door Thickness Adjustable for doors 1-3/4" to 2"
Handing Non-handed, field reversible
Latchbolt 2-3/4" backset, 1/2" throw
ANSI/BHMA Certified grade 1, ANSI/BHMA A156.2
UL/cUL Listed for 3 hour fire doors
Lever Augusta style lever

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
