Yale BAU-NTB623-NR-626

Nextouch Capactive Touchscreen Keypad Cylindrical Lock with SFIC Prep

Quick Product Details

  • Bored Lock with Capactive Touchscreen
  • Cylinder Override, with SFIC Prep, Cylinder not included.
Price: $551.00 /each

SKU: BAU-NTB623-NR-626

Choose Options Below

Touchscreen responds to human touch, enabling convenient entrance or access to programming menu. Keyless entry and management.

  • Stock Item
  • Order in the next 4 hours 36 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $551.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core, NO Keys Included + $40.00 1C7A1-7 pin Best Uncombinated IC core, NO Keys Included +$40.00

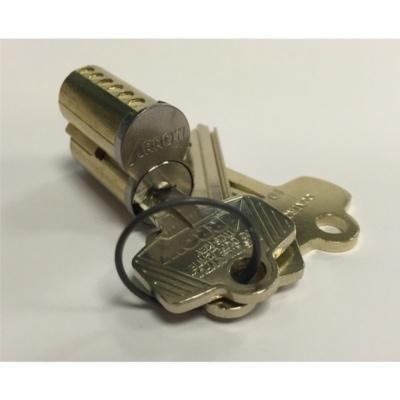

Keyed Core,ME33-6B010 6 Pin (Includes 2 Operating, 1 Control Key) + $54.00 Keyed Core,ME33-6B010 6 Pin (Includes 2 Operating, 1 Control Key) +$54.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

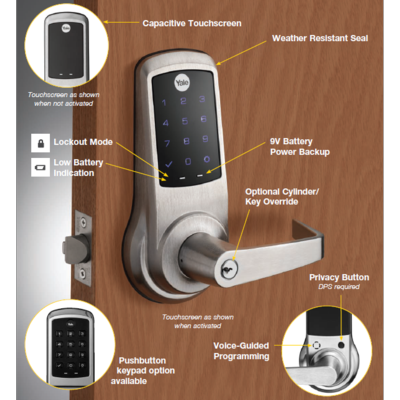

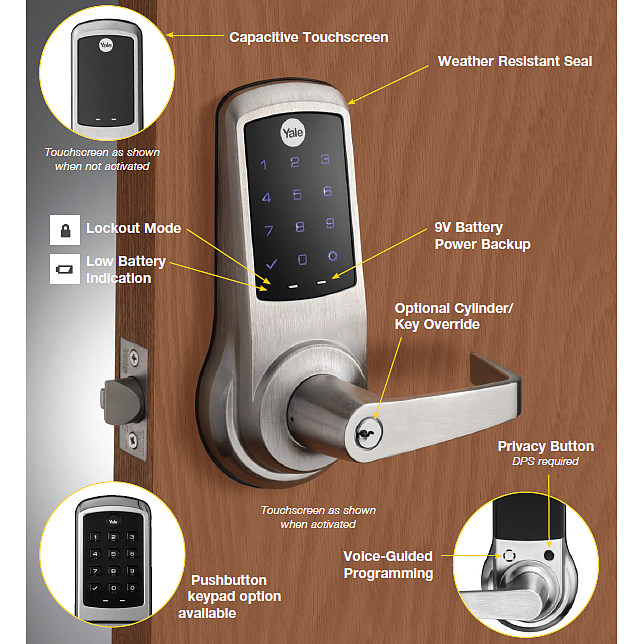

Lock w/ Capacitive Touchscreen - cylinder override with SFIC Prep. (Cylinder not included)
  • Powered by 4 AA alkaline batteries.
  • PIN code access-Installations are able to be programed with up to 500 unique PIN codes and a master codes for access to programming.
  • Key override, with SFIC Prep, cylinder Not included.
  • Touchscreen responds to human touch, enabling convenient entrance or access to programming menu.
  • Voice-guided programming in 3 languages. Voice-guided prompts make updates straightforward and effortless in English, Spanish or French.
  • Three (3) volume modes. Playback can be set for normal, low or silent.
  • Privacy feature-By holding the interior lock button down for 1.5 seconds, the exterior keypad is temporarily disabled ensuring complete privacy and no additional entry.
  • Weather resistant gasket-Lock is operational even in outdoor settings, in temperatures ranging from -40°F to 140°F at 95% relative humidity.
  • Augusta style lever.
  • 626-satin chrome finish.

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core, NO Keys Included
    • Keyed Core,ME33-6B010 6 Pin (Includes 2 Operating, 1 Control Key)
    • No IC Core Needed

Product at A Glance

  • Low battery indicator- Blinking designation signals internal 4 AA alkaline batteries are low.
  • Optional passage mode-PIN codes can be used to enable passage mode, allowing for continuous entry for non-restricted traffic.
  • Keypad lockout feature-Deters tampering by disabling the keypad for a default of 180 seconds after five successive failed attempts.
  • Lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1
  • nexTouch cylindrical certified ANSI/BHMA A156.2, Series 4000 Grade 1.
  • Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.

More Info

  • Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside.
  • Inside lever always active.
  • Deadlocking latchbolt.
