Yale PNR-8807FL-626

Special Order Complete Entry Function Mortise Lock

Quick Product Details

  • Complete Mortise Lock
  • Entrance or Office Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: PNR-8807FL-626

Choose Options Below

This Yale 8807FL is an entrance function Complete mortise lock set. Its deadlocking latchbolt is retracted by rotation of either lever, except when the outside lever is locked by toggle. When the outside lever is set, the latchbolt is operated with a key in the outside and lever on the inside.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

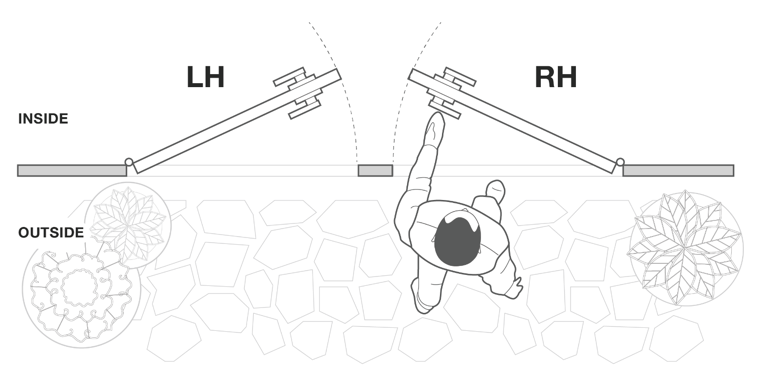

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Choose Finish:

626-Satin Chrome 626-Satin Chrome

Choose Cylinder:

Mortise Cylinder Mortise Cylinder
No Mortise Cylinder Needed. Subtract -($60.00)

Help Me Decide

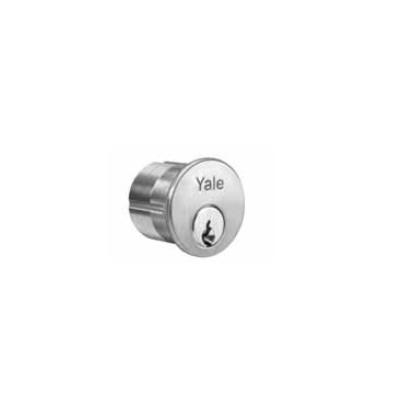

Cylinders are provided standard with cams to operate Yale® mortise locks.

  • 1-1/8" size.
  • Keyed different with 2 keys.
  • Satin chrome finish.
  • 6 pin cylinder.
  • Para keyway.

Choose KA/KD:

Keyed different - Standard
Keyed alike

Help Me Decide

  • Locks supplied keyed differently have unique keys supplied with each lock or cylinder.
  • Locks supplied keyed alike come with two keys, that are the same as other locks supplied at the same time.
  • If you are only purchasing one, select keyed different.



Overview

Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • ANSI/BHMA Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL Listed - for application on labeled fire doors.
  • 10 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

  • Cylinder: info icon

    • Mortise Cylinder
    • No Mortise Cylinder Needed.
  • KA/KD: info icon

    • Keyed different - Standard
    • Keyed alike

Product at A Glance

Non-Stock Special order with 6-7 week lead time

Includes PNR style lever and rose
Option for Keyed-Alike from factory
Style Complete mortise lock set
Function Office or Entry Function:
- Deadlocking latchbolt
- Latchbolt retracted by lever either side, except when outside lever locked by toggle
- When outside lever is set, latchbolt is operated by key outside and lever inside.
Handing Handed - field reversible
Door Thickness 1-3/4"
Backset 2-3/4"
Latchbolt - 3/4" throw
- stainless steel
- 2-piece
- anti-friction
Latchbolt - 3/4" throw
- stainless steel
- 2-piece
- anti-friction
