Zero International 320AA-36

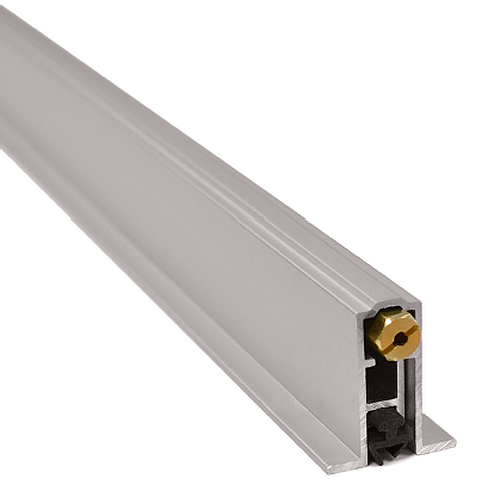

Light Duty Mortised Automatic Door Bottom

Quick Product Details

  • Fully Mortised
  • Adjustable hex nut allows the door bottom to drop 1/4-3/4
  • Tested to 5 million cycles!
Price: $63.00 /each

SKU: 320AA-36

Choose Options Below

How do Automatic Door Bottoms work? As the door is closed, the adjustable plunger is compressed against the door frame, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion. The door seal compresses on either even or uneven surfaces and retracts automatically when the door is opened

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $63.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Length:

36 36" - 3FT (Standard)
35-1/2 35-1/2"

Overview

Available Options: Choose Options Above

  • Length:

    • 36" - 3FT (Standard)
    • 35-1/2"

Product at A Glance

Installation Type Mortise
Material Finish Clear Anodized Aluminum
Door Size Up to 36" Wide, can be trimmed up to 2" in the field
Door Type For Wood doors

More Info

Zero’s patented automatic door bottom technology ensures
an efficient seal against the floor or saddle. Zero door bottoms are designed to
block penetration by air, sound, smoke and flames.
All Zero automatic door bottoms function the same way. The concealed
spring mechanism causes the insert seal to activate on the hinge side first.
It prevents the seal from dragging along the floor or threshold while the
door is being closed to avoid door hang-up or closing delay.
