Adams Rite 8611-MLR-36

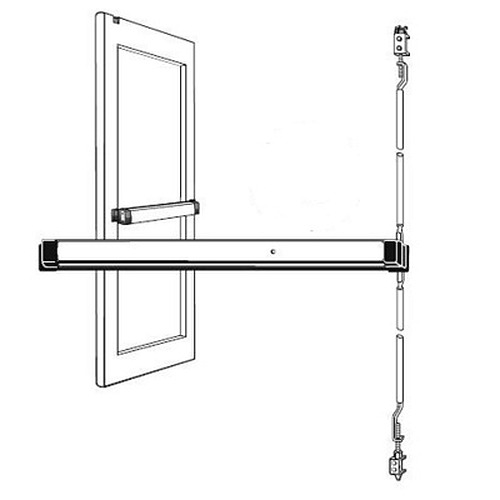

Special Order Narrow Stile Concealed Vertical Rod Exit Device with MLR-Motorized Latch Retraction

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8611-MLR-36

Choose Options Below

The Adams Rite 8611-MLR narrow stile concealed vertical rod exit devices are for aluminum stile glass doors with 2" minimum stile. With MLR-Motorized Latch Retraction.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

628  Anodized Aluminum 628 Anodized Aluminum

Overview

Special order non stock item with 6 week lead time
  • Clear anodized aluminum 628 finish.
  • Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
  • No calibration required during installation.
  • MLR-Motorized Latch Retraction: The MLR Motorized Latch Retraction option provides near-silent operation.
  • The MLR device also features combined electric dogging and electric latch retraction which minimizes hardware projection and noise.
  • 850 mA during retraction and 370 mA maintained in dogged hold position.
  • Requires 2A at 24 VDC regulated/filtered power supply.Adams Rite recommends that for optimal performance all exit devices with MLR option be paired with PS-SE Power Supply.
  • Finish-Clear anodized aluminum-628
  • For doors 36" wide.
  • For doors 1-3/4" thick.
  • Exit only function, no entry from outside.
  • Bar height adjustable from 30"- 44".
  • Door height is adjustable for doors up to 66" above the select bar height.
  • Non handed.
  • Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.
  • Order PS-SE Power Supply separately.

Available Options: Choose Options Above

More Info

  • ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
  • Projection-2-5/8", 1-5/8" when dogged.
  • Pushbar made of extruded aluminum.
  • Patented top latching mechanism interlocks door to frame.
  • Top and bottom adjustable steel rods.
