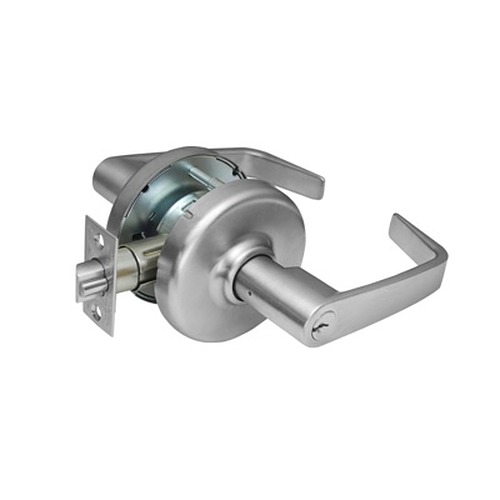

Corbin Russwin CL3851-59A1-B500

Special Order Standard Duty Commercial Entrance Lever with 5" Backset

Quick Product Details

  • Lever Set
  • Entrance/Office Function
  • Standard Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: CL3851-59A1-B500

Choose Options Below

This Corbin Russwin CL3851 is a high quality, standard duty lever set. It operates with the entrance/office function with a push/turn button on the inside lever. The vandal resistant lever design allows rotation of lever even when in the locked position. With 5" Backset.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 - Satin Chrome 626 - Satin Chrome
625 - Polished Chrome + $9.00 625 - Polished Chrome +$9.00
612 - Satin Bronze + $9.00 612 - Satin Bronze +$9.00
613 - Oil Rubbed Bronze + $9.00 613 - Oil Rubbed Bronze +$9.00
605 - Polished Brass + $9.00 605 - Polished Brass +$9.00

Choose Lever Style:

NZD - Newport NZD - Newport
AZD - Armstrong AZD - Armstrong
PZD - Princeton PZD - Princeton

Overview


Special order non stock item with 4 week lead time
  • Meets ANSI/BHMA A156.2 series 4000 Grade 2 requirements
  • With 59A1 keyway.
  • UL listed for 3 hour fire rated doors
  • Meets A117.1 Accessibility Code
  • 7 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • There are anti-rotational through-bolts at 6 and 12 o'clock positions
  • Independent return springs prevent lever sag
  • The vandal-resistant-lever handle is freewheeling in locked position
Style Lever set
Grade Standard duty
Function Entrance or Office Function:
- Pushing turn button on the inside lever locks the outside lever
- Rotating inside lever or the using a key will unlock the outside lever
- When the turn button is rotated, the outside lever is locked until the turn button is manually rotated back to its standard position
- Inside lever is always free
- ANSI F109
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Strike ANSI curved lip - 4-7/8" x 1-1/4" x 1-1/4" lip (standard)
Latch Stainless steel
Throw 1/2"
Latch Front 2-1/4" x 1-1/8"
Backset 5"

More Info


Here's the perfect lock, for the perfect price, for nearly all applications. This lock can be adapted to suit all your specifications.
