dormakaba 3001

Narrow Stile Mechanical Push Button Lock

Price: $256.00 /each

SKU: 3001

Choose Options Below

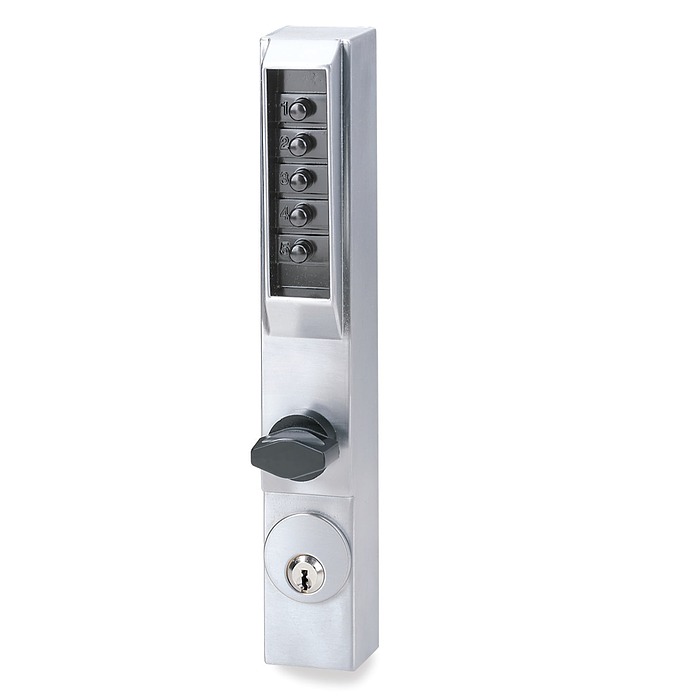

The Simplex 3000 mechanical push button lock provides exterior access by combination for narrow stile aluminum glass doors.

  • Stock Item
  • Order in the next 1 hour 50 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $256.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome
55 Dark Bronze (695) Duranodic 55 Dark Bronze (695) Duranodic

Choose Drive Assembly:

Need Help Deciding? QH chevron down
3010-19-41-31/32" Backset-Right Hand-Right Hand Reverse +$63.00
3020-19-41-31/32" Backset Left Hand-Left Hand Reverse +$63.00
3030-19-41-1-1/8" or 1-1/2" Backset-Right Hand-Right Hand Reverse +$63.00
3040--19-41-1-1/8" or 1-1/2" Backset-Left Hand-Left Hand Reverse +$63.00
No Drive Assembly Needed

Help Me Decide















Choose Cylinder:

1 1" Mortise Cylinder-Schlage SC1 Keyway +$15.00
No Cylinder Needed

Overview

  • No battery fully mechanical lock.
  • Single access code, one easy-to-manage code for all users.
  • Lock is easily programmed via keypad without removing lock from the door.
  • Requires a optional Drive Assembly not included.
  • Works with Adams Rite 4510 or 4900 narrow stile aluminum door deadlatch.
  • Key override requires a mortise cylinder compatible with Adams Rite narrow stile locks, not included.
  • Passage function allows access without using the lock entry code.
  • Lockout function disables the lock so that entry code cannot be used to gain access.
  • For doors 1-3/4" thick maximum.
  • Stile Width 1⅞" minimum.

Available Options: Choose Options Above

  • Finish:

  • Drive Assembly: info icon

    • 3010-19-41-31/32" Backset-Right Hand-Right Hand Reverse
    • 3020-19-41-31/32" Backset Left Hand-Left Hand Reverse
    • 3030-19-41-1-1/8" or 1-1/2" Backset-Right Hand-Right Hand Reverse
    • 3040--19-41-1-1/8" or 1-1/2" Backset-Left Hand-Left Hand Reverse
    • No Drive Assembly Needed
  • Cylinder:

    • 1" Mortise Cylinder-Schlage SC1 Keyway
    • No Cylinder Needed

More Info

  • Passage function allows access without using the lock entry code. Feature activated from the outside using cylinder override key.
  • Lockout functions disables the lock so that entry code cannot be used to gain access. Access is permitted using the key override only. This
    is activated from the outside using the cylinder override key.
  • Weather resistant.
  • All metal cast front housing, force-resistant, clutch-protected fixed thumbturn.
  • Numeric Keypad Vandal resistant, solid metal pushbuttons.
