Falcon EL2390-EO-US28-7FT

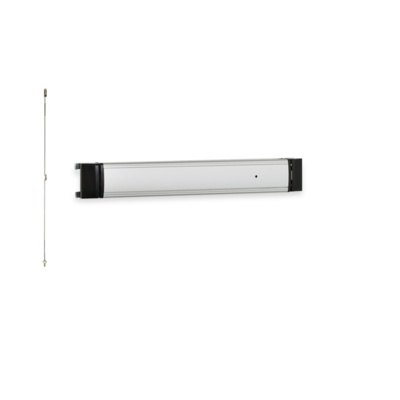

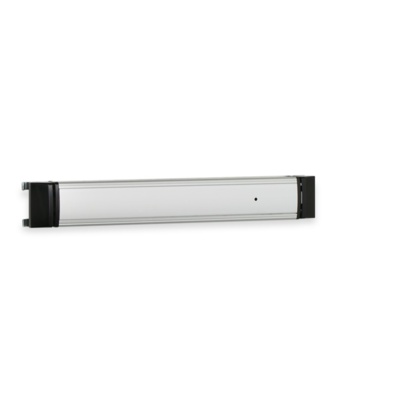

Special Order Concealed Vertical Rod Mid-Panel Exit Device

Quick Product Details

  • Concealed Vertical Rod Mid-Panel Exit Device
  • EL-Electric Latch Retraction
  • Exit Only (EO) No outside Trim
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EL2390-EO-US28-7FT

The 2390 is a grade 1 concealed vertical rod exit device designed for high use and abuse.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time
  • The 2390 concealed vertical rod device exit devices are grade 1 recessed push pad exit devices designed for aluminum doors.
  • The recessed device sits in the rail of the door, preventing it from damage or wear when large equipment is moving in and out of the door opening
  • Certified ANSI A156.3 Grade 1 standards. UL305 listed.

Product at A Glance

  • Reduced projection recessed device.
  • Vertical rods,7' standard.
  • Easy rod adjustment simplifies installation.
  • Field reversible, non handed.
  • Door thickness,1 3⁄4" thick metal doors .
  • Projections: 1 5⁄8" with pushbar extended. Pushbar height is 3 1⁄4".
  • Stile:1 3⁄4" minimum.
  • EL - electric latch retraction, EL requires PS914-2RS minimum power supply. Not included.
  • End caps,sloped metal end caps.
