Norton 5710

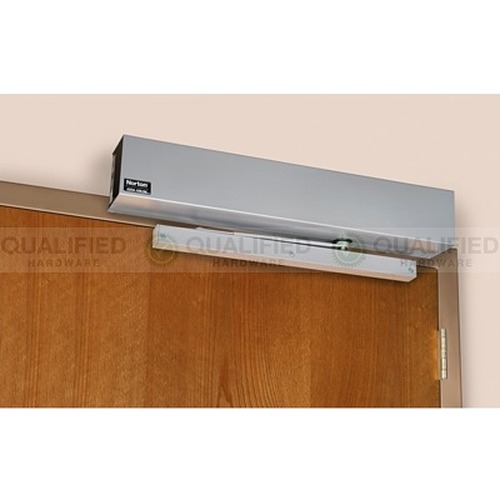

Powermatic Pull Side Low Energy Power Operator

Quick Product Details

  • Powermatic Low Energy Door Operator
  • For interior and exterior doors
  • Pull Side Mount
Price: $2,487.00 /each

SKU: 5710

Choose Options Below

This Norton 5710-689 powermatic electrohydraulic pull side mount low energy operators for interior and exterior doors provide easy access for people with disabilities, the elderly or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.

  • Stock Item
  • Order in the next 16 hours 39 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $2,487.00

Choose Finish:

Sprayed Aluminum Sprayed Aluminum


Suited For:
  • Interior and exterior doors
  • For moderate traffic applications.

Quality and Safety:
  • UL / cUL listed listed for use on fire and smoke barrier doors.
  • UL10C listed for positive pressure fire test.
  • Meets requirements for Americans with Disabilities Act (ADA).
  • ANSI/BHMA A156.19 certified.
  • 2 year limited warranty.

Available Options: Choose Options Above

Product at A Glance

  • Electrohydraulic low energy operators incorporate a door closer for smooth reliable door control.
  • Power adjustable spring sizes 1-6
  • Operates as mechanical surface closer during close cycles, when door is opened manually or if power is turned off.
  • Includes a backcheck valve.
  • Relay Output: SPDT
    • Normally Open/Normally Closed jumper
  • Onboard power supply for accessories: 24VDC
  • Electrohydraulic units are used in applications where doors are typically operated manually but can also be activated via wall switches, motion sensors, etc. for automatic operation.
  • Obstruction detection feature
  • Unit activation options, Wall switches, Motion sensor or Radio frequency device.
  • Hold Open options  0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
  • Rigid arm & slide track.
Style Powermatic Low Energy Door Operator
Mounting Pull Side (hinge side)
Door Handing Non-handed
Door Weight Maximum 250 lbs.
Door Width Minimum 29" single doors
Power Input 120VAC
Reveal Maximum 1/8"
Door Opening Maximum 180°
Finish Sprayed aluminum (689)

More Info

Electrohydraulic door operators are used in applications where the door is generally operated manually  but it will occasionally require automatic operation and functioning via a wall switch, radio frequency or motion sensor.  This closer can be applied to single doors that are a minimum of 29” wide and weigh a maximum of two-hundred and fifty pounds.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
