Norton 5730

Powermatic Push Side Low Energy Power Operator

Quick Product Details

  • Powermatic Low Energy Door Operator
  • For interior and exterior doors
  • Push-Side Mount
Price: $1,693.00 /each

SKU: 5730

Choose Options Below

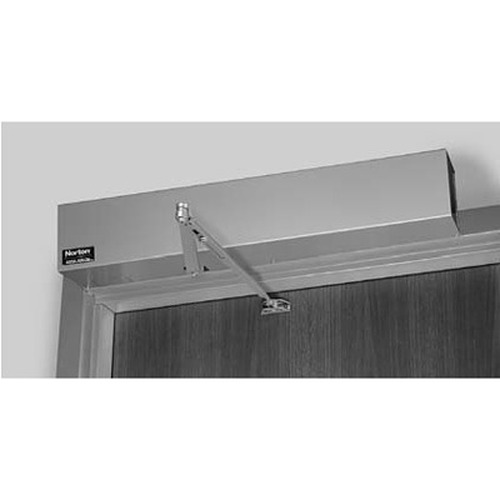

This Norton 5730 is a powermatic low energy door operator for interior and exterior doors. The 5730 gets mounted on the push side of the door. Designed for simple installation in minutes. It is a reliable device that operates soundlessly and complies with ADA requirements.

  • In Stock!
  • Order in the next 4 hours 4 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,693.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview


Suited For:
  • Interior and exterior doors.
  • For moderate traffic applications.

Quality and Safety:
  • C-UL US listed for use on fire and smoke barrier doors.
  • Meets requirements for Americans with Disabilities Act (ADA)
  • 2 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Electrohydraulic low energy operators incorporate a door closer for smooth reliable door control.
  • Power adjustable spring sizes 1-6
  • Operates as mechanical surface closer during close cycles, when door is opened manually or if power is turned off.
  • Includes a Backcheck valve.
  • Power Input; 120 VAC.
  • Relay output: SPDT
    • Normally Open/Normally Closed jumper.
  • Onboard power supply for accessories: 24VDC
  • Electrohydraulic units are used in applications where doors are typically operated manually but can also be activated via wall switches, motion sensors, etc. for automatic operation.
  • Obstruction detection feature
  • Unit activation options, Wall switches,  Motion sensor or  Radio frequency device.
  • Hold Open options  0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
  • Rigid arm & slide track .
Style Powermatic Low Energy Door Operator
Mounting Push Side (stop side)
Door Handing Non-handed
Door Weight Maximum 250 lbs.
Door Width Minimum 29" single doors
Power Input 120VAC
Frame Reveals 2-5/8" to 6-3/4"
Reveal Maximum 1/8"
Door Opening Maximum 180°

More Info


Often, applications require a closer that will operate with manual functioning on a regular basis but they should have the ability to function automatically when necessary. This electrohydraulic close is perfect for such applications to provide you with smooth and reliable manual and automatic operation.
