Rixson 700-Complete

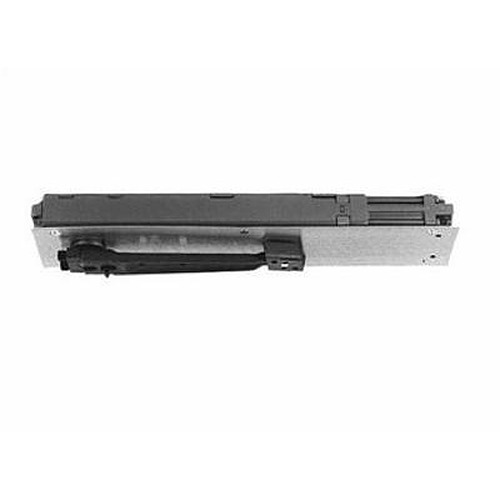

Single Acting Overhead Closer for Aluminum Door & Frame

Quick Product Details

  • Overhead Closer
  • For Aluminum Doors and Frames
  • Center-Hung
  • Standard Duty
  • Single Acting
SKU: 700-Complete can include all components

Starting price: $1,073.00 /each

Choose Options Below

This Rixson 700-Complete is a single-acting overhead door closer that is designed for aluminum doors and frames. Great for use on interior and exterior doors that are used moderately. This package is available with many different options to suit your needs for an efficient door closer.

  • In Stock!
  • Order in the next 27 hours 57 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,073.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Overhead Concealed Closer Body image
Buy Separately

2) Mounting Brackets:

Attaching Brackets image
Buy Separately


3) Cover Plate:

700 Series Cover Plate image
Buy Separately


4) Arm Package:

Arm Package image
Buy Separately


5) Pivot:

Center Hung Pivot for aluminum door applcations image
Buy Separately


Choose Finish:

605 - Polished Brass (US3) 605 - Polished Brass (US3)
613 - Oil Rubbed Bronze (US10B) 613 - Oil Rubbed Bronze (US10B)
626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Hold Open:

NHO (Non Hold-Open)
AHO (Automatic Hold-Open)

Help Me Decide

No hold-open

Door does not remain open (door will swing 130 degrees in both directions)

Automatic hold-open

Door will remain open at preset degrees until manually closed

Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide

Choose Select Size:

right hand show 707 - Ext 3' x 8' - Int 3'3" x 8'
right hand shown 708 - Ext 3'6" x 8' - Int 3'8" x 8'

Help Me Decide

Product: Exterior Door Size: Interior Door Size
707 3’0” x 8’0” 3’3” x 8’0”
708 3’6” x 8’0” 3’8” x 8’0”



Overview


Suited for:
  • Exterior and interior aluminum doors and frames with low to medium traffic.

Quality:
  • 2 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Hold Open: info icon

    • NHO (Non Hold-Open)
    • AHO (Automatic Hold-Open)
  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees
  • Select Size: info icon

    • 707 - Ext 3' x 8' - Int 3'3" x 8'
    • 708 - Ext 3'6" x 8' - Int 3'8" x 8'

Product at A Glance

Style Overhead closer
Application Center-hung
Door Handing Handed
Function Single acting
Door Weight Up to 200 lb
Door Size Select size in above options
Door Thickness 1-3/4"

Rixson’s 700 series overhead concealed closers are top quality closers that operate with high efficiency. They comply with ANSI/BHMA A156.5 series and are limitedly warranteed by  Rixson for 2 years. This complete package includes an overhead closer body (700), mounting brackets (163), cover plate, arm package 8002020 and center-hung bottom pivot (218). This closer should be used on exterior and interior doors that have a moderate traffic rate and weigh no more than two-hundred pounds.
