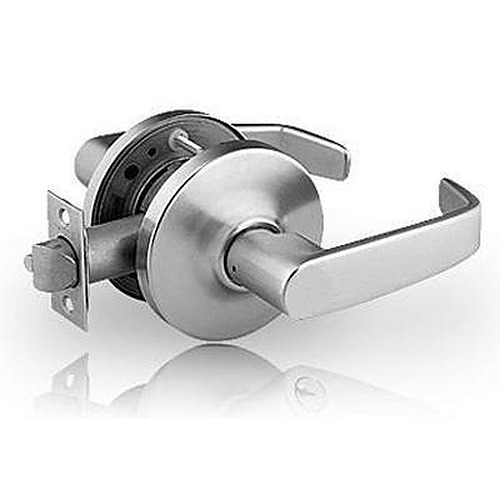

Sargent 10XU15

Heavy Duty 10 Line Passage Lever

Quick Product Details

  • Lever Set
  • Heavy Duty
  • Passage Function
Price: $365.00 /each

SKU: 10XU15

Choose Options Below

This Sargent 10U15 passage lever lock allows entry from the inside and outside at all times (either arm is always free). Suited for heavy duty commercial and institutional applications such as medical, educational, and municipal facilities. 10 Line locks are designed with the highest quality and safety to guarantee you ultimate satisfaction with the use of this product.

  • Stock Item
  • Order in the next 32 hours 41 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $365.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Choose Lever:



Suited for:
  • Commercial and institutional heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL listed to U.S.A. and Canadian safety standards; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 7 year limited warranty

Door preparation: (161 standard modified with 2 through-bolt holes)
  • Can be easily installed in one minute or less
  • Includes easy to follow instruction sheets
  • Packaging is user friendly
  • Installation diagram is conveniently displayed on box

Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Heavy duty
Function Passage Function:
- Outside and inside knobs are always free
- ANSI F75
Handing Non-handed
Backset 2-3/4"
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Stile Minimum 4-1/2"
Design - Rose - L style
- Lever - select above

More Info

The 10 line Sargent bored lever locks are extremely durable and have above average ability to withstand abusive force and remain firm, not to allow unauthorized entry. This lock is also designed to conform to fire and handicap requirements on a national and state level. Sargent also backs their products with a 7 year limited warranty to guarantee you satisfaction.
