Sargent 10XU93

Single Lever Pull

Quick Product Details

  • Lever Set
  • Heavy Duty
  • Single Lever Pull Function
Price: $158.00 /each

SKU: 10XU93

Choose Options Below

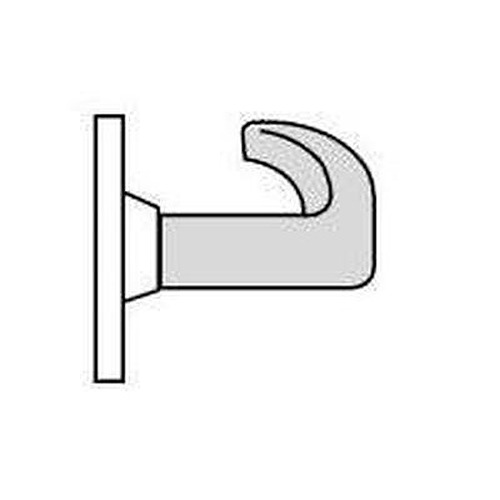

This Sargent 10U93 is a 10 Line lever set which consists of only one lever that operates without a latch. It is for wood or custom hollow metal doors in commercial or institutional exteriors and interiors. Requires special door preparation for installation (see template for clear instructions) and lever and rose are attached with thru-bolts and surface applied screws.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $158.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Choose Lever:



Suited for:
  • Commercial and institutional applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 7 year limited warranty

Door preparation:
  • See template

  • Can be easily installed in one minute or less
  • Includes easy to follow instruction sheets
  • Packaging is user friendly
  • Installation diagram is conveniently displayed on box

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

  • For wood or custom hollow metal doors
  • Lever and rose are attached with thru-bolts and 4 hidden surface applied screws
Style Lever set
Grade Heavy duty
Function Single Lever Pull Function:
- Single lever
- No latching
Design - Rose - L style
- Lever - select above
Handing Non-handed

More Info

Design is a significant factor when deciding upon  door hardware. We therefore offer a variety of finishes and lever styles to choose from to enhance the decor in your facility. Select above from polished brass (605), satin brass (606), satin bronze (612), oil-rubbed bronze (613), polished chrome (625)  and satin chrome (626) finishes and from the three available lever styles L, B or
P for a tasteful look.
