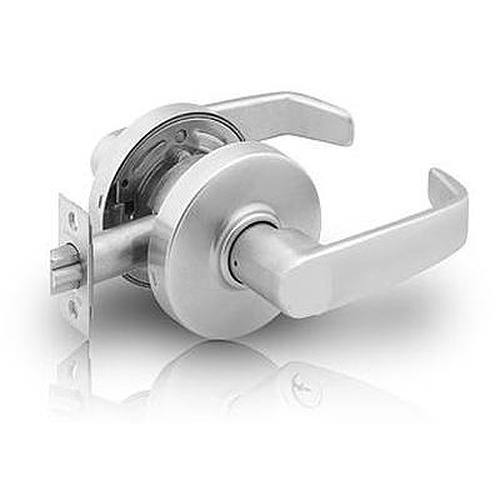

Sargent 20-7U15

Special Order Standard Duty Passage Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Passage Function
  • 2-3/8" Backset
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 20-7U15

Choose Options Below

This Sargent 7U15 is a commercial standard duty lock which allows passage via both levers at all times. Conveniently supplied as a non-handed product that can be used on right or left handed doors. Fits doors with standard thickness of 1-3/4" and backset of 2-3/8". The door stile must be at least 4-1/2" wide.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) + $9.00 Polished Brass (US3) +$9.00
Oil Rubbed Bronze (US10B) + $9.00 Oil Rubbed Bronze (US10B) +$9.00
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Lever:

B B
L L
P P

Overview

Special order item with 4 week lead time
Suited for:
  • Standard duty commercial interior doors

  • Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Meets ADA requirements for barrier free accessibility

Door Preparation: (161 standard) 1” edge bore hole
  • Mortise - width 1-1/8”, height 2-1/4”

  • Can be easily installed in one minute or less
  • Includes easy to follow instructions
  • Convenient installation diagram on box



Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Standard duty
Function Passage Function:
- Outside and inside levers are always free
- ANSI F75
Handing Non-handed
Strike 4-7/8" curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (brass)
Throw 1/2"
Door Thickness 1-3/4" standard
Backset 2-3/8" (standard)
Stile 4-1/2" minimum
Design - Rose - L style
- Lever - select above

More Info


Sargent passage function locks can be used in practically any commercial application where no locking is necessary. They are often used in offices on doors where free entry and exit is permitted at all times or on closet doors that do not require locking. You can rely upon Sargent to provide you with unparalleled quality and durability for all your commercial locking needs.
