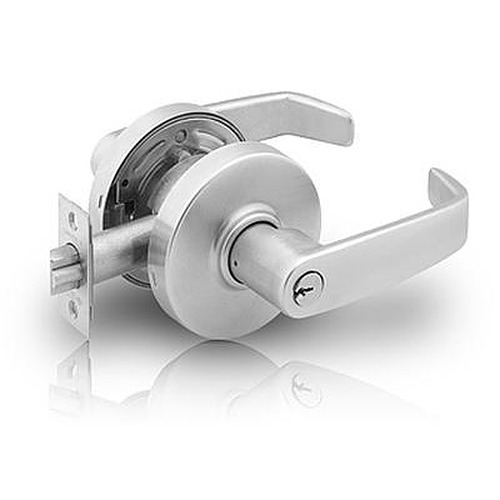

Sargent 7G04

Standard Duty Storeroom Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Storeroom or Closet Function
SKU: 7G04

Price: $152.00 /each

Choose Options Below

This Sargent 7G04 storeroom function lever lock is a high quality lock that exceeds ANSI/BHMA A156.2 series 4000 Grade 2 standards. This lock can be easily installed within one minute using the supplied easy to follow instruction and the installation diagram that is conveniently displayed on the box.

  • In Stock!
  • Order in the next 17 hours 37 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $152.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) + $9.00 Polished Brass (US3) +$9.00
Oil Rubbed Bronze (US10B) + $9.00 Oil Rubbed Bronze (US10B) +$9.00
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Cylinder:

Need Help Deciding?
LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
RC (1 bitted ready to be keyed)-Special Order Item-Extended Lead Time. RC (1 bitted ready to be keyed)-Special Order Item-Extended Lead Time.
60 Prepped for Removable Core 60 Prepped for Removable Core
No Cylinder Needed (LC) Subtract -($40.70)

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder



60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core

Easily rekeyed without disassembling entire lock. Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

No cylinder

cylinder not included

Choose Lever:

B B
L L
P P

Overview


Suited for:
  • Standard duty commercial exterior and interior doors

Quality and Safety:
  • Exceeds ANSI/BHMA A156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Meets ADA requirements for barrier free accessibility
  • Deadlocking latch bolt to prevent lock picking by credit card
  • Internal through-bolts provide strength and stability without requiring additional door preparation

Door Preparation: (161 standard)
Conveniences:
  • Can be easily installed in one minute or less
  • Includes easy to follow instructions
  • Convenient  installation diagram on box

Special Orders Available:
  • More unlisted finishes available
  • Available with a backset of 2-3/8”
  • Available for a door thickness of 1-3/8”
Contact us directly to place your special order.


Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • RC (1 bitted ready to be keyed)-Special Order Item-Extended Lead Time.
    • 60 Prepped for Removable Core
    • No Cylinder Needed (LC)
  • Lever:

    • B
    • L
    • P

Product at A Glance

Style Key-in-lever lock
Grade Standard Duty
Function Storeroom or Closet Function:
- Always locked on the outside knob
- Requires a key for entry
- Inside knob is always free
- ANSI F86
Handing Non-handed
Strike 4-7/8" curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (brass)
Throw 1/2"
Door Thickness 1-3/4" (standard)
Backset 2-3/4" (standard)
Stile 4-1/2" (minimum)
Design - Rose - L style
- Lever - select above

The Sargent 7 line lock is an excellent combination of quality, reliability, convenience and tasteful design. This lock far surpasses ANSI/BHMA A156.2 4000 series, Grade 2 standards for strength and durability. It installs conveniently in less than a minute.  To enhance the aesthetics of your application, we offer a variety of finishes and lever designs.
